Area scan camera - Runix

Where large Area scan meets for High-speed imaging

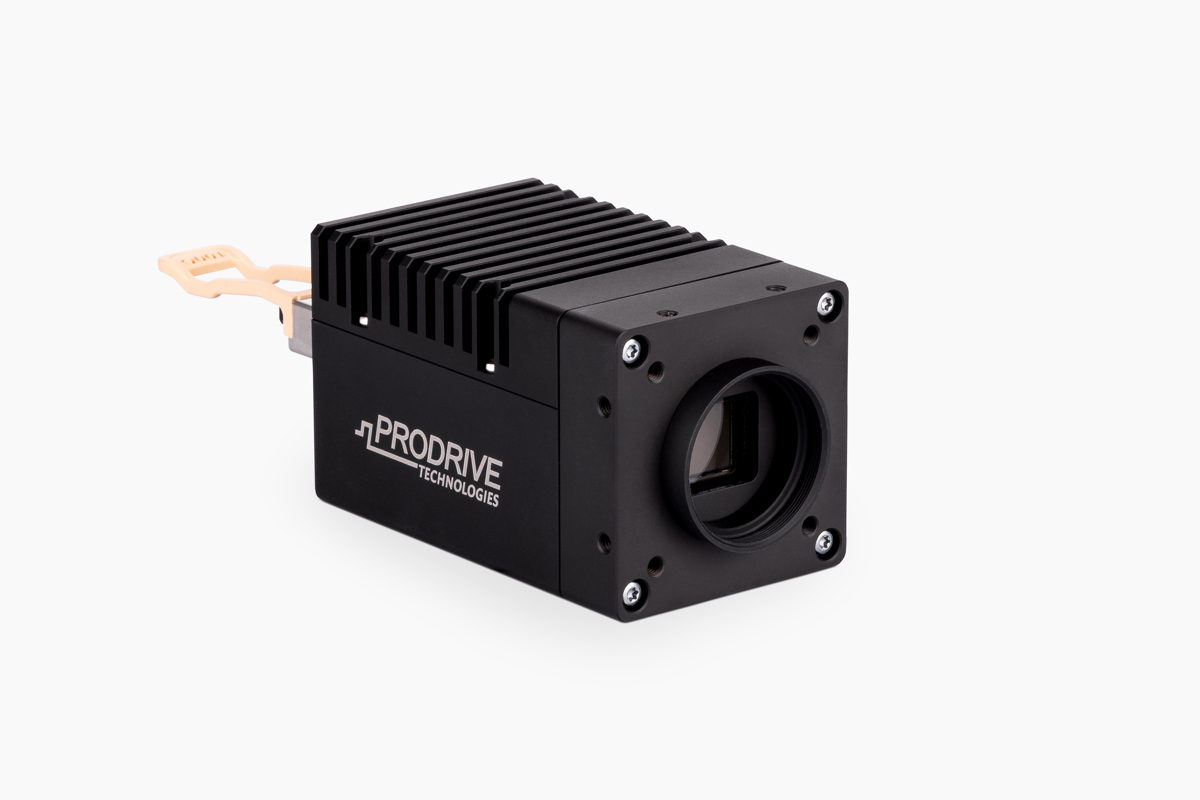

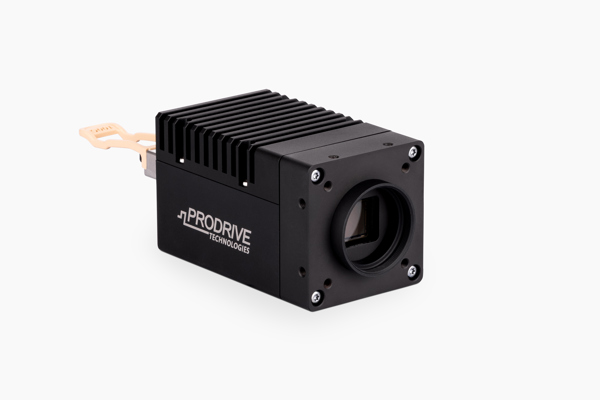

  • Area scan camera Runix elevated-right.jpg

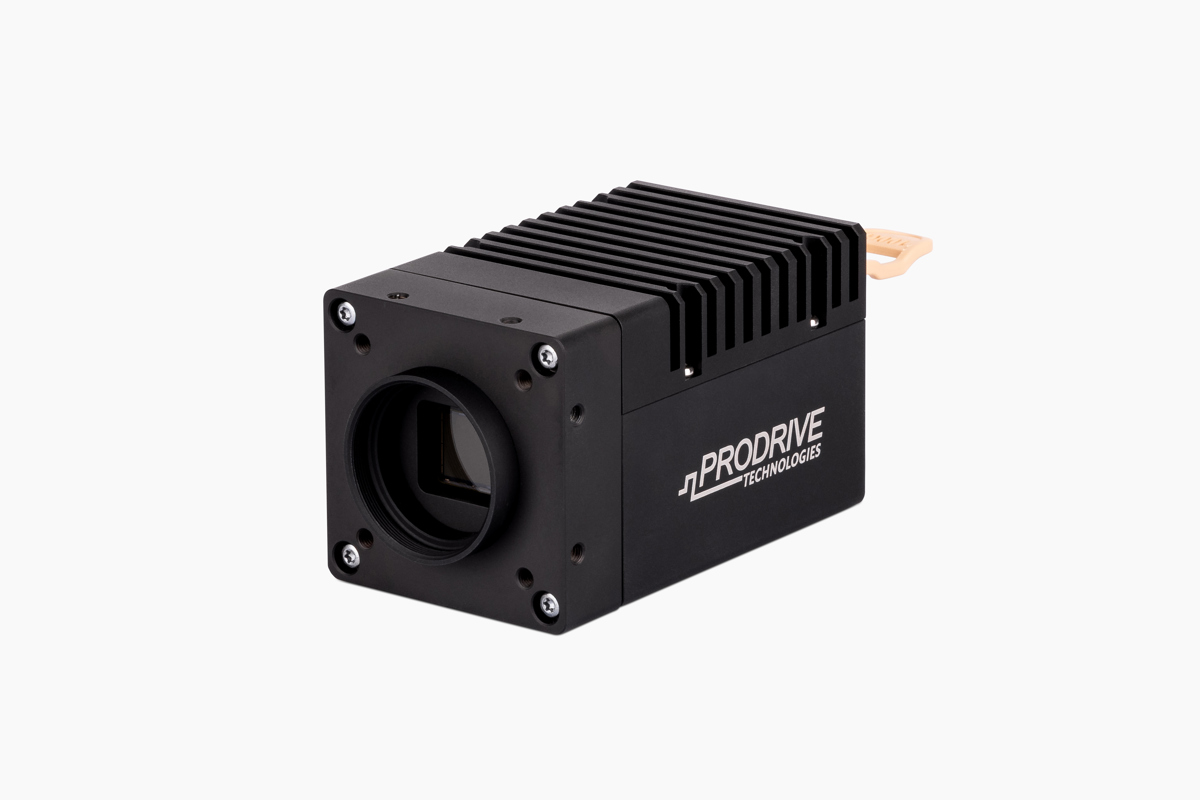

  • Area scan camera Runix elevated-left.jpg

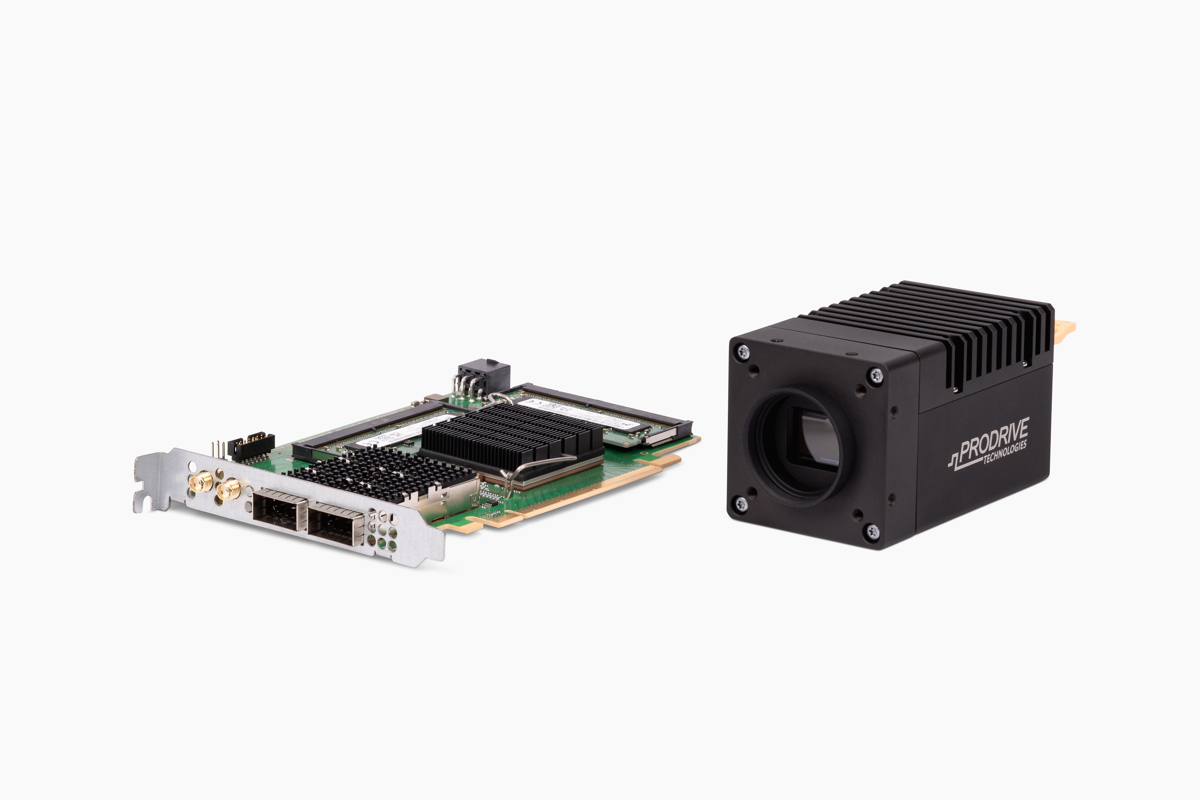

  • Area scan camera Runix group-elevated-left.jpg

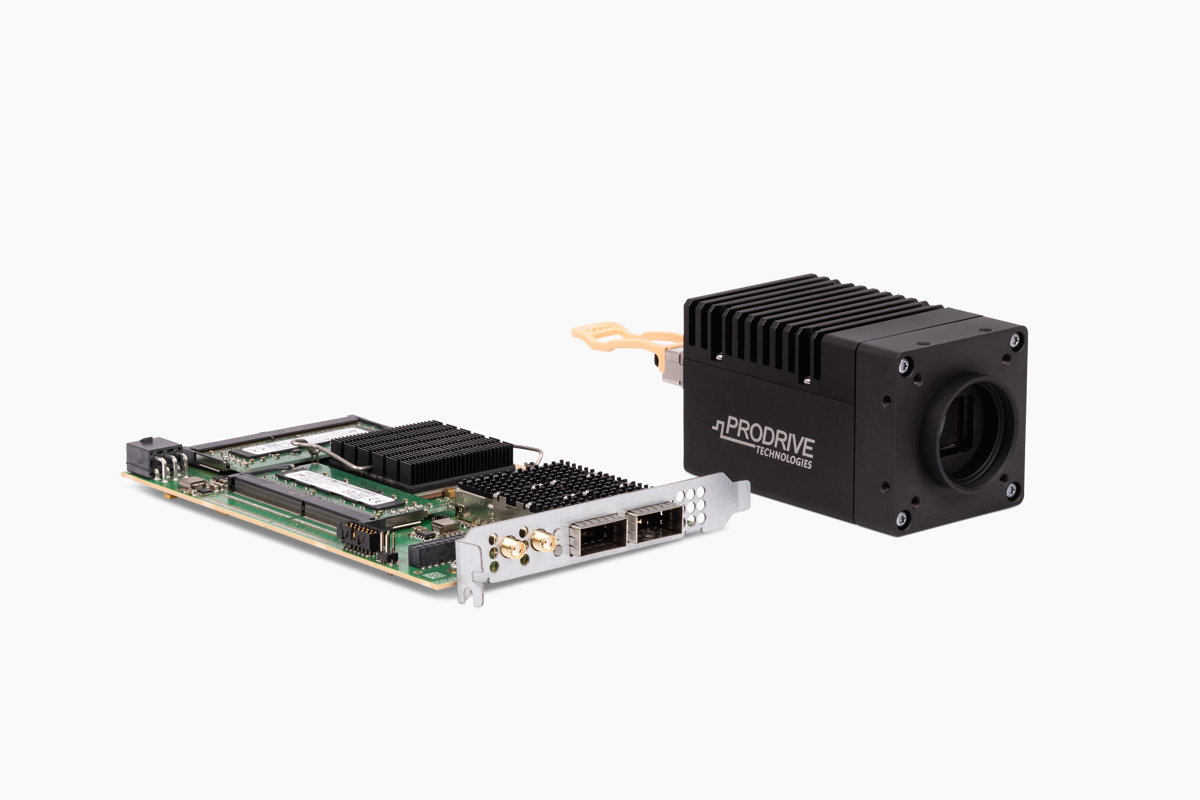

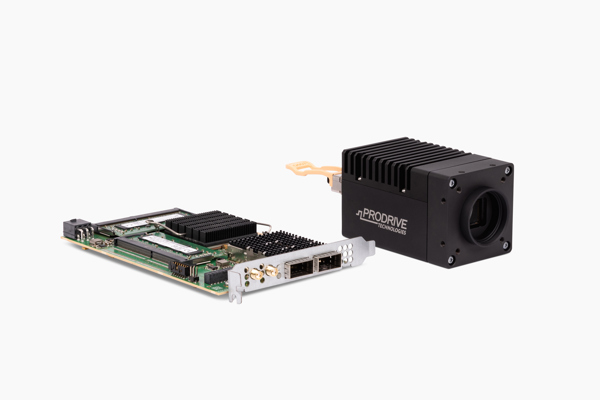

  • Area scan camera Runix group-elevated-right.jpg

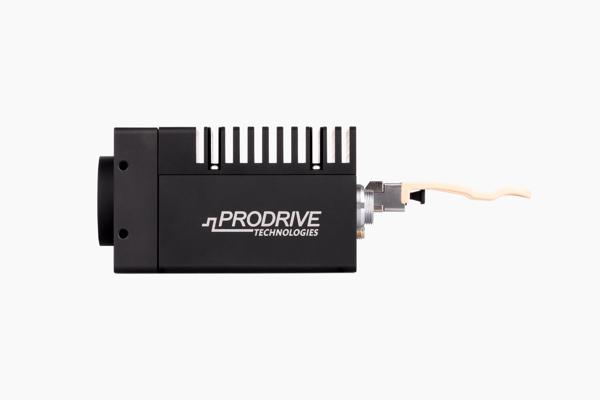

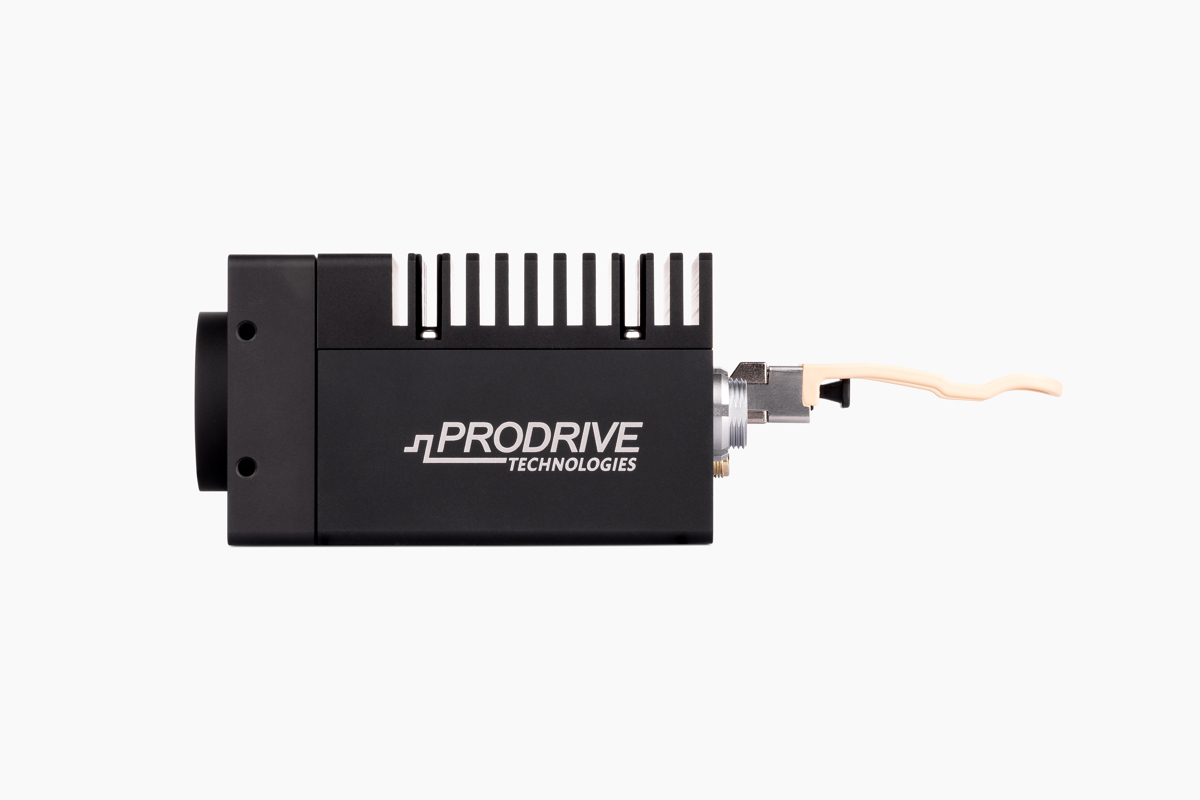

  • Area scan camera Runix left.jpg

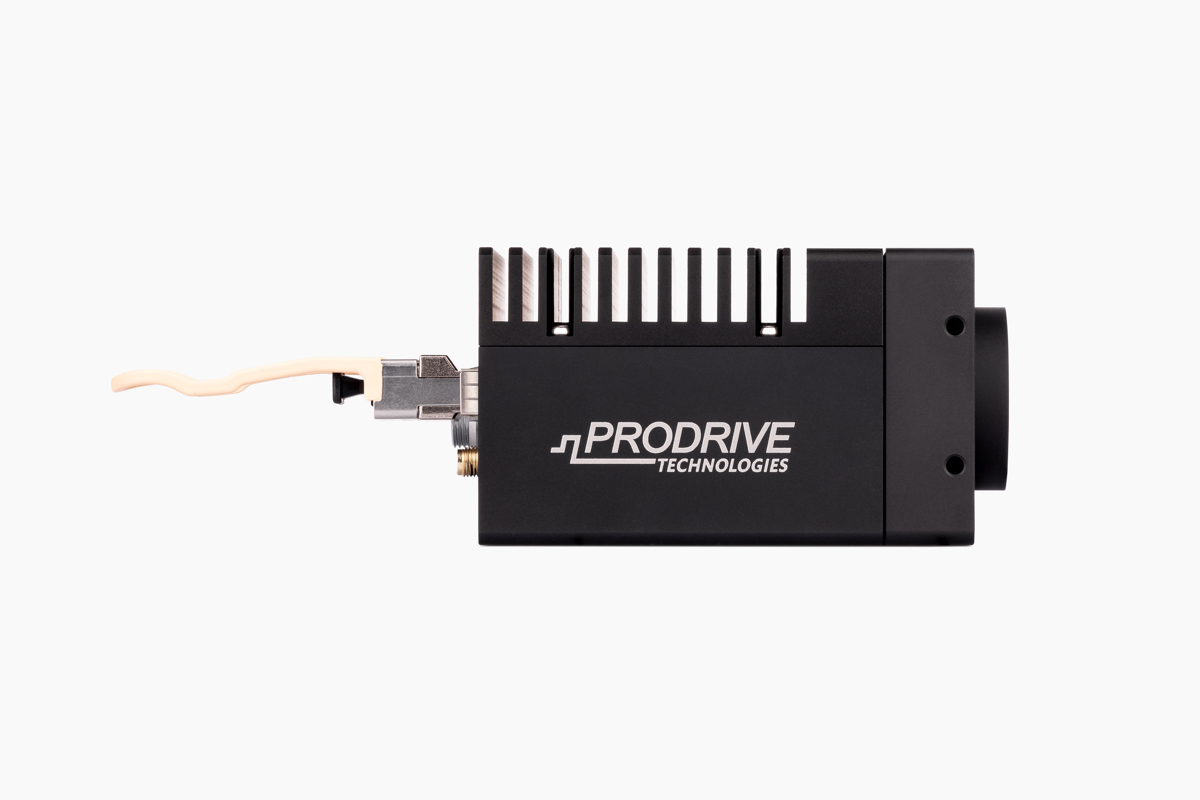

  • Area scan camera Runix right.jpg

The Runix camera is engineered for high-speed imaging in demanding industrial and scientific applications.

Powered by a next-generation global shutter BSI sensor from the Sony Pregius family, Runix delivers exceptional sensitivity and low-noise performance while maintaining ultra-high frame rates.

With resolutions up to 105 megapixels and acquisition speeds beyond 10GPx/s, Runix sets a new standard for high-speed & large area scan inspection, making it the ideal solution for semiconductor and flat panel display (FPD) applications, as well as process monitoring, motion analysis, and scientific imaging.

Talk to sales

  • Large FOV, high frame rate imaging

    Shorten your measurement cycle, increase accuracy & throughput

  • 1 platform, multiple sensor options

    Choose from a wide ange of sensor options to maximizes flexibility

  • Solid thermo-mechanical design

    Compact, low mass eases system integration

  • High-Speed 100G optical interface

    Lower your TCO

  • - Unique high pixel rate imaging
  • - GigE Vision 3.0 over RDMA or CLHS
  • - GenICam compliant
  • - ROI Read-out
  • - Multiple resolution options
  • - Fiber optic interface, cables lengths >100mtr

Technical Specification

Specification SX12 SX24 MX50 MX68 MX105 MX12 MX26
Sensor IMX926 IMX925 IMX929 IMX928 IMX927 IMX949 IMX947
Resolution 4,128 × 3,008 5,328 × 4,608 8,224 × 6,176 8,256 × 8,256 10,272 × 10,272 4,112 × 3,088 5,136 × 5,136
Frame Rate (8bpp) 660 442 225 138 112 811 423
Interface CLHS or GigE3.0 Optical Fiber via 1xQSFP28 CLHS or GigE3.0 Optical Fiber via 1xQSFP28 CLHS or GigE3.0 Optical Fiber via 1xQSFP28 CLHS or GigE3.0 Optical Fiber via 1xQSFP28 CLHS or GigE3.0 Optical Fiber via 1xQSFP28 CLHS or GigE3.0 Optical Fiber via 1xQSFP28 CLHS or GigE3.0 Optical Fiber via 1xQSFP28
Pixel Size 2.74µm 2.74µm 2.74µm 2.74µm 2.74µm 5.48µm 5.48µm
Optical Diagonal 14.0 19.3 28.2 32.0 39.8 28.2 39.8
Pixel format 8/10/12b 8/10/12b 8/10/12b 8/10/12b 8/10/12b 8/10/12b 8/10/12b
ROI Read-out Yes Yes Yes Yes Yes Yes Yes
Dimensions 60 × 60 × 100 60 × 60 × 100 75 × 75 × 100 75 × 75 × 100 75 × 75 × 100 75 × 75 × 100 75 × 75 × 100
Mass TBD TBD TBD TBD TBD TBD TBD
Lens Mount C-mount or TFL mount C-mount or TFL mount M58, TFL mount or TFL-II mount M58, TFL mount or TFL-II mount M58, TFL mount or TFL-II mount M58, TFL mount or TFL-II mount M58, TFL mount or TFL-II mount
Power 12-24V DC, <30W 12-24V DC, <30W 12-24V DC, <30W 12-24V DC, <30W 12-24V DC, <30W 12-24V DC, <30W 12-24V DC, <30W
