Yooka Area Scan Camera

Ultra Fast Area Scan camera delivering up to 2,000fps with high sensitivity

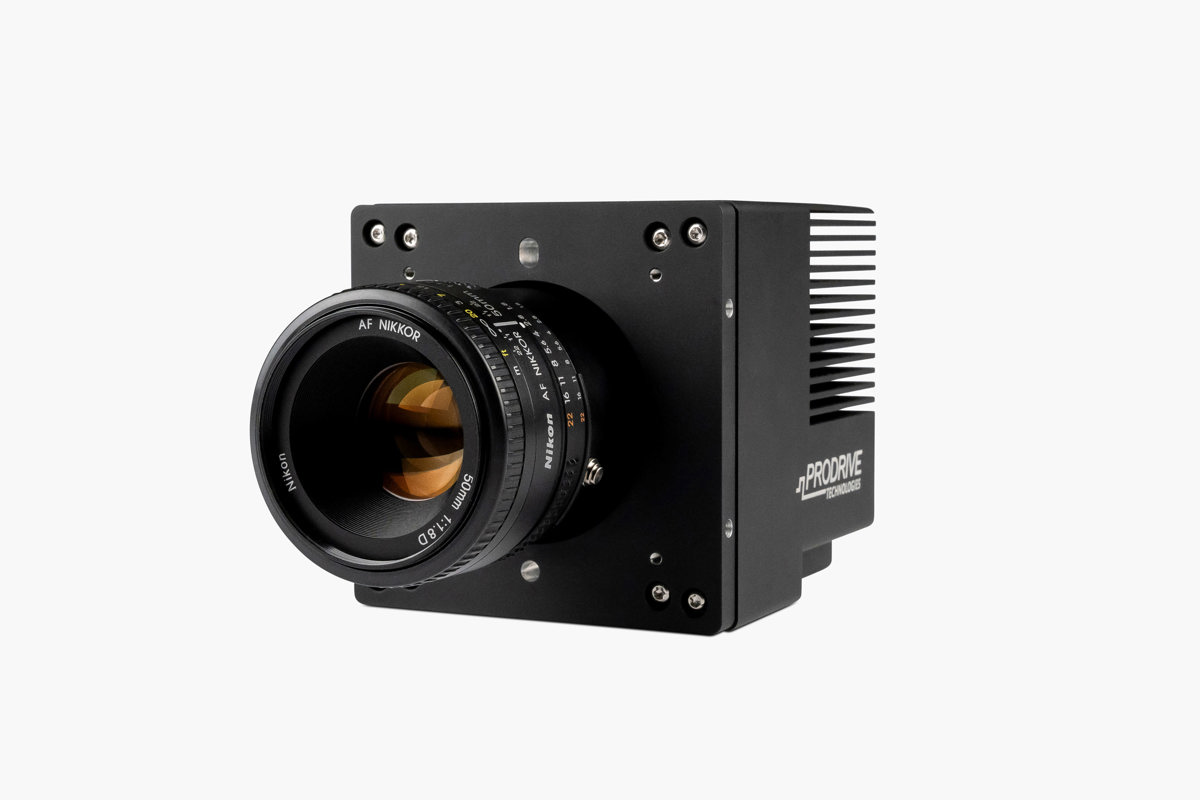

  • Area scan camera Yooka -elevated-left

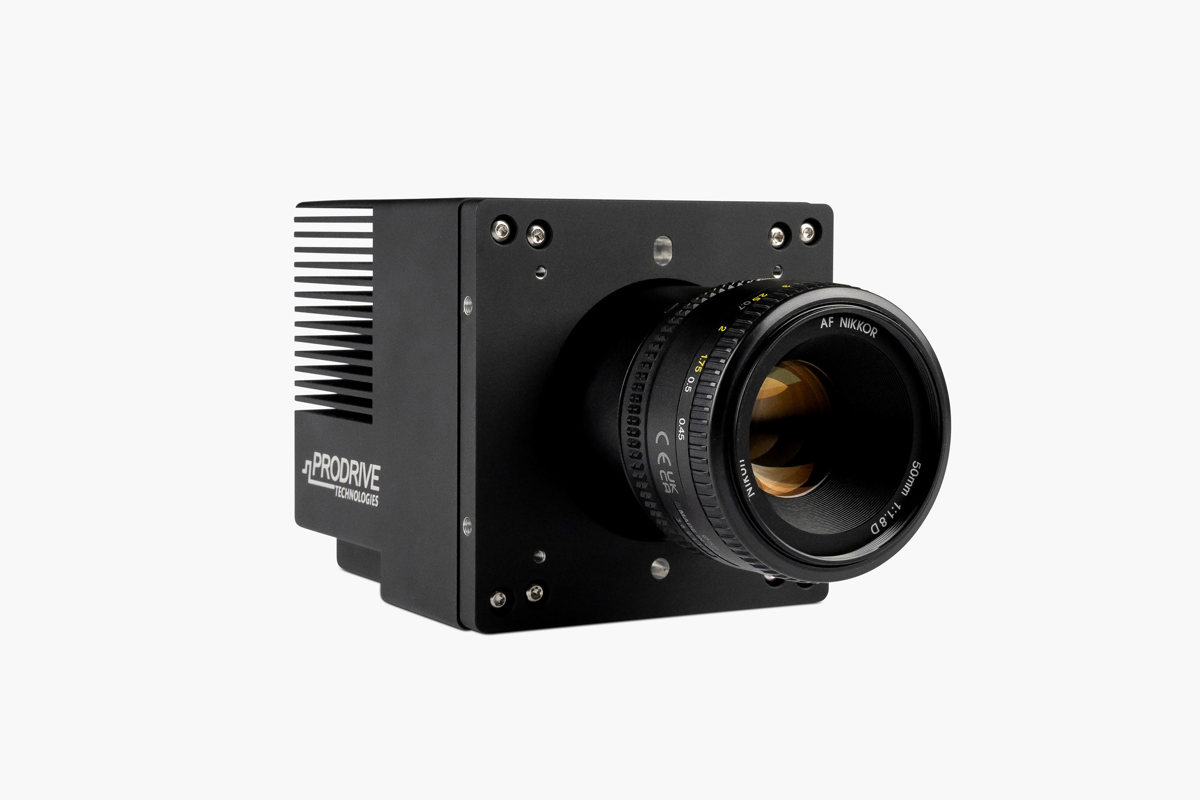

  • Area scan camera Yooka -elevated-right

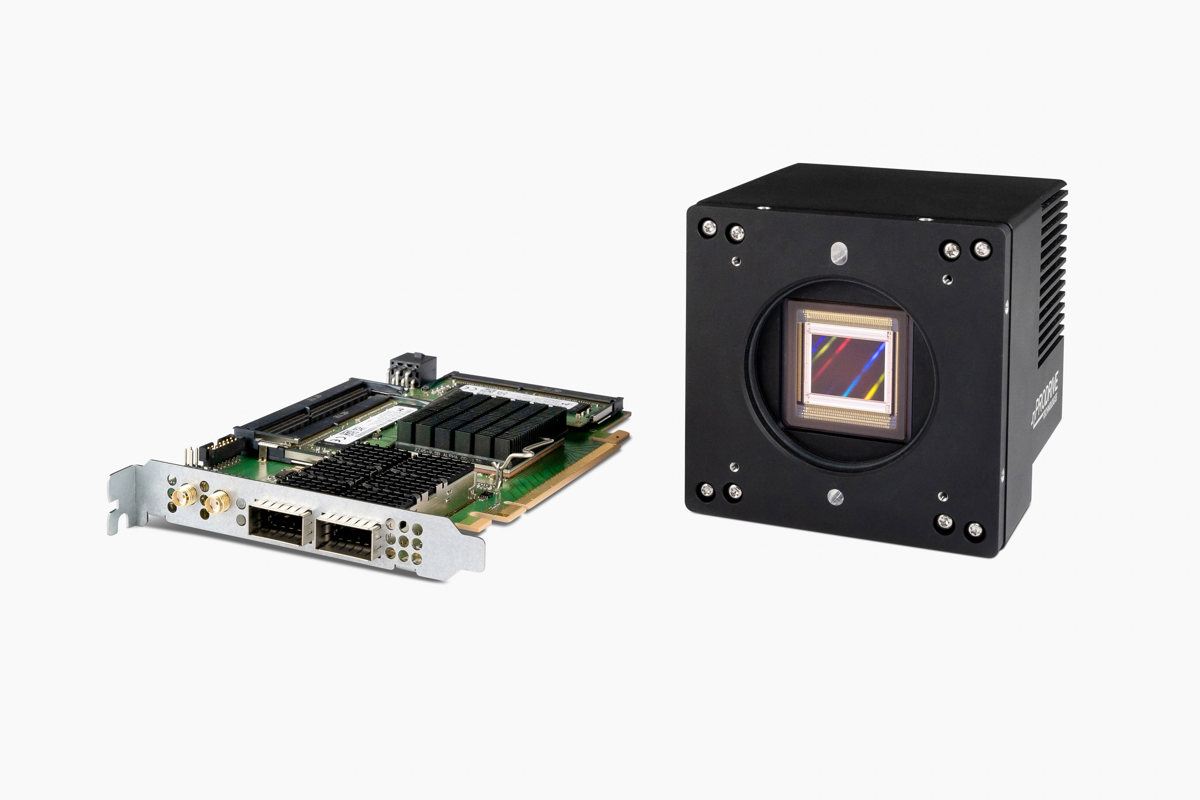

  • Area scan camera Yooka group-elevated-left

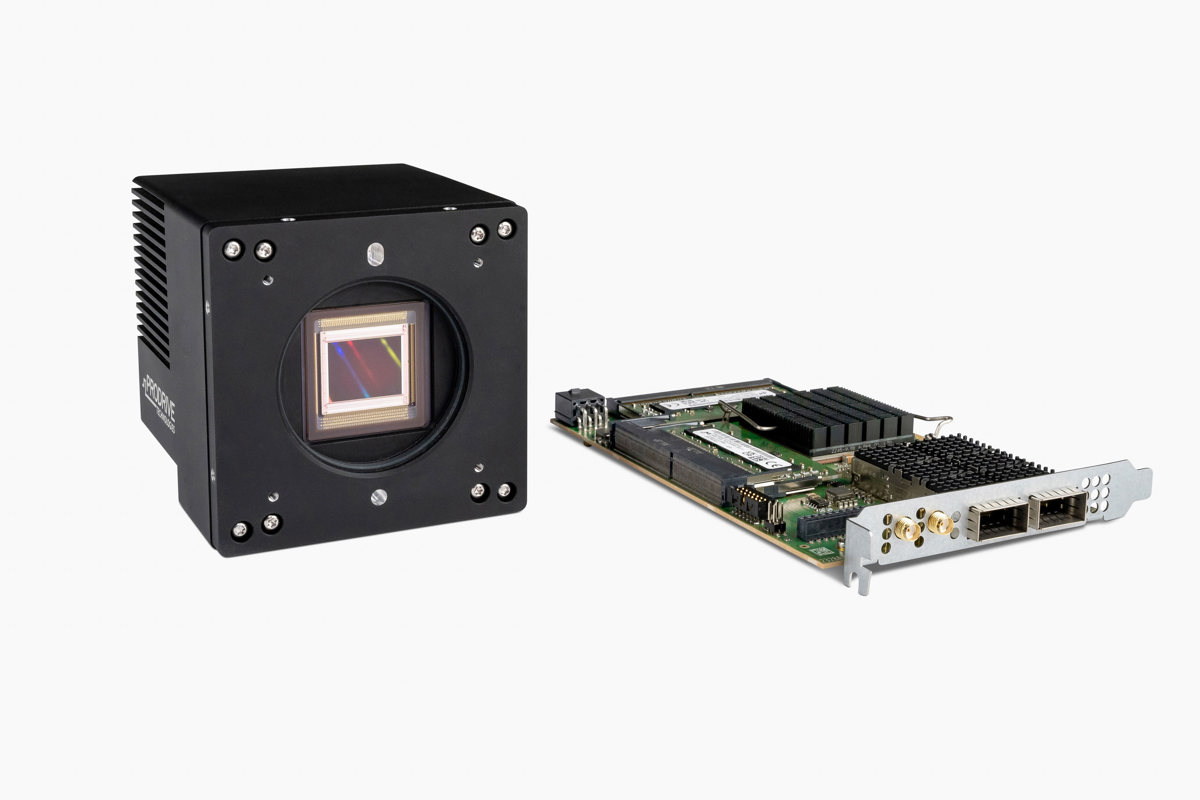

  • Area scan camera Yooka group-elevated-right

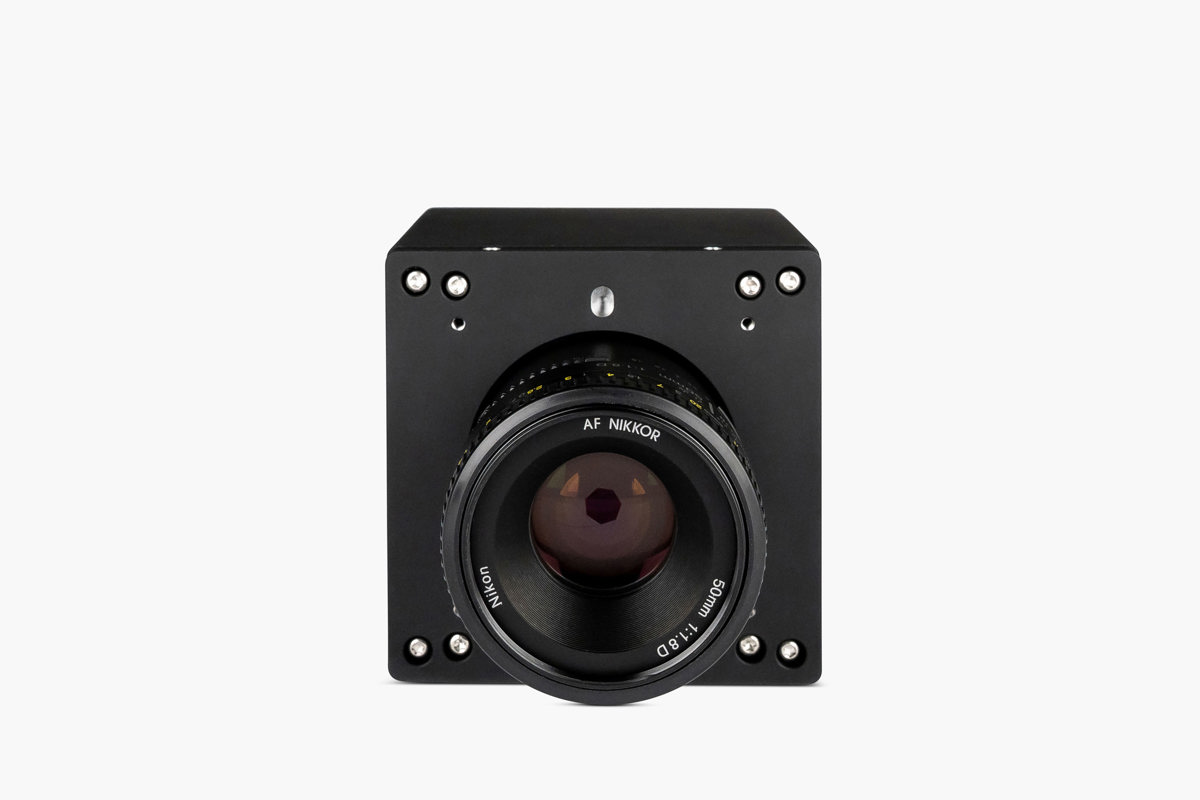

  • Area scan camera Yooka-elevated-top

Experience Next-Level Speed and Accuracy with the Yooka High-Speed Area Scan platform.

The Yooka platform is an industry leading solution designed to meet with the ever-growing demand for higher throughputs and measurement accuracy in advanced imaging applications.

Delivering an impressive speed up to 2,000fps in 10MPx resolution the Yooka series sets a new benchmark in high-resolution area scan imaging. Multiple resolution options are available offering a flexible trade-off between the required field of view and acquisition speed.
For a seamless system integration, the Yooka camera connects effortlessly to the GenICam compliant Apollo frame grabber via a CLHS optical fiber interface. A single frame grabber can support the camera’s full performance, while a dual frame grabber configuration can be deployed for the most demanding high throughput applications.
Speak with our experts today to discover how the Yooka camera can elevate your inspection system to new levels of speed, accuracy, and reliability.

Talk to sales

  • Unique high frame rate imaging

    Shorten your measurement cycle,

    increase throughput

  • Platform that supports multiple resolution options

    Maximizes flexibility

  • End-to-End solution including GenICam frame grabber

    Lower your TCO

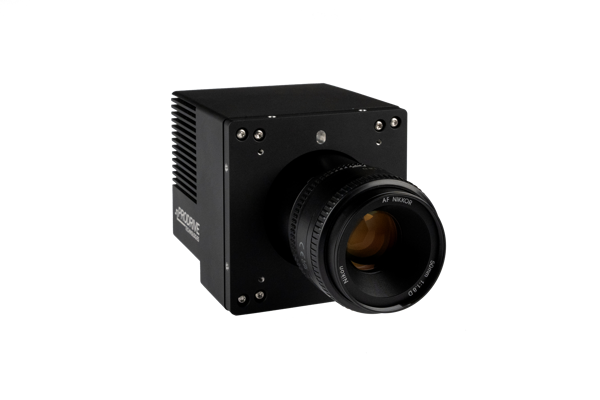

Area Scan Camera Yooka-Elevated-Right.png

Features

  • Unique high framerate/high resolution imaging
  • 2x2 fast binning
  • Pixel level flat field correction
  • Multiple user sets for custom flat field correction
  • ROI Read-out
  • Multiple resolution options
  • Fiber optic interface, cables lengths >100mtr
  • End-to-End solution, GenICam compliant

Application areas

Our TDI camera covers a wide field of applications including multi-electron beam, X-ray, DUV, visible light, and infrared imaging

  • DNA sequencing

    DNA Sequencing

  • Flat panel display processing


  • PCB inspection

    PCB Inspection

  • Digital pathology


  • Wafer inspection


Markets

  • Semiconductor


    Image processing and defect classification

  • Medical & life sciences


    Video-over-IP solution for low-latency, uncompressed video distribution

  • Flat panel display


    Components and solutions for LED, LCD, DLP, plasma and LCD displays

Technical specifications

Model Unit Yooka-10 (M-Model) Yooka-10 (F-Model) Yooka-14 (M-Model) Yooka-21 (M-Model) Yooka-21 (F-Model)
Resolutions Pixels 4,608 × 2,176 4,608 × 2,176 4,608 × 3,072 5,120 × 4,096 5,120 × 4,096
Pixel Size µm 4.5 × 4.5 4.5 × 4.5 5.5 × 5.5 4.5 × 4.5 4.5 × 4.5
Shutter - Global Global Global Global Global
Frame Rate (Full resolution) fps 890 (8bit) 1,920 (8bit) 670 (10bit) 500 (8bit) 1,000 (8bit)
890 (10bit) 1,000 (10bit) 350 (12bit) 460 (10bit) 500 (10bit)
480 (12bit) 480 (12bit) 250 (12bit) 250 (12bit)
Interface - CLHS, 1xQSFP – 4x25Gbps CLHS, 2xQSFP – 8x25Gbps CLHS, 1xQSFP – 4x25Gbps CLHS, 1xQSFP – 4x25Gbps CLHS, 2xQSFP – 8x25Gbps
ROI Read-Out - Yes Yes Yes Yes Yes
Dynamic Range dB 67.3 67.3 66.2 66.8 66.8
Lens Mount - M58 M58 M58 M58 M58
Dimensions mm 99 × 99 × 105 99 × 99 × 105 99 × 99 × 105 99 × 99 × 105 99 × 99 × 105
Cooling - Heatsink (Air) or Water Heatsink (Air) or Water Heatsink (Air) or Water Heatsink (Air) or Water Heatsink (Air) or Water
Color - Monochrome Monochrome Monochrome Monochrome Monochrome
