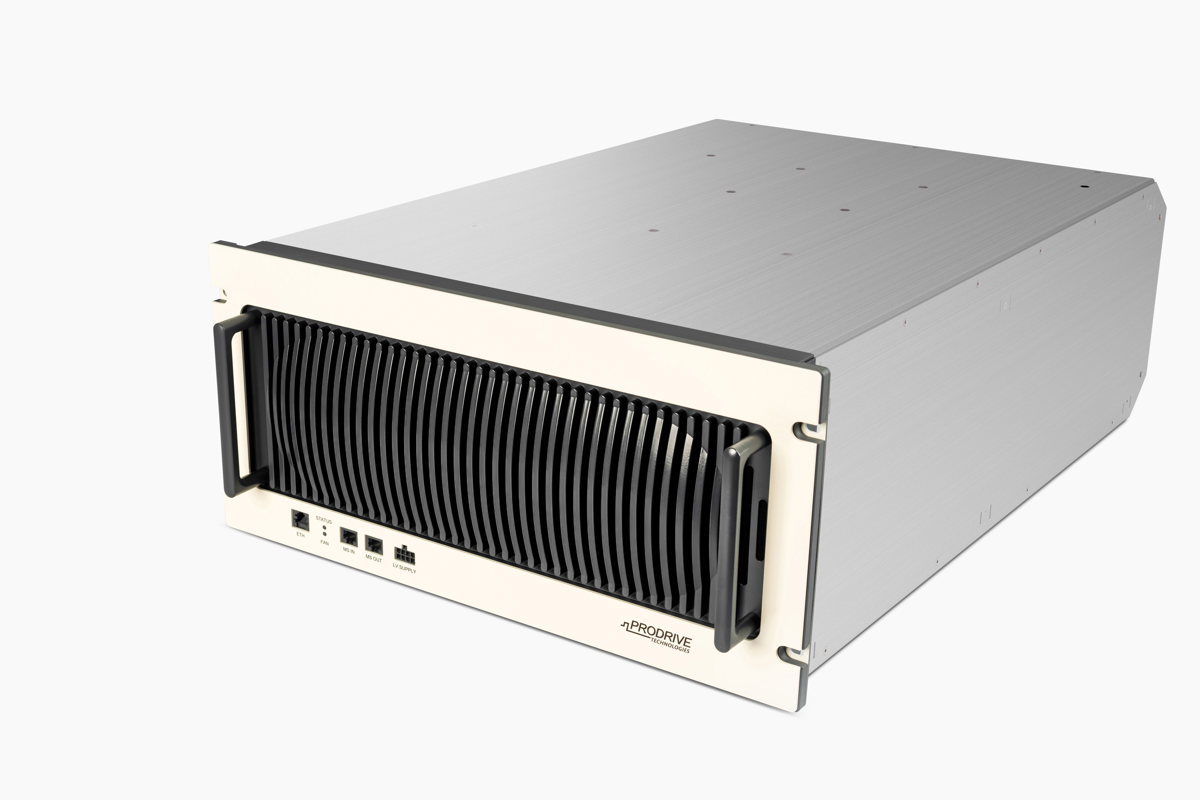

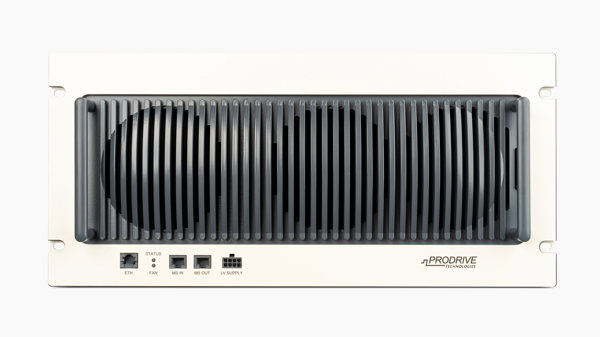

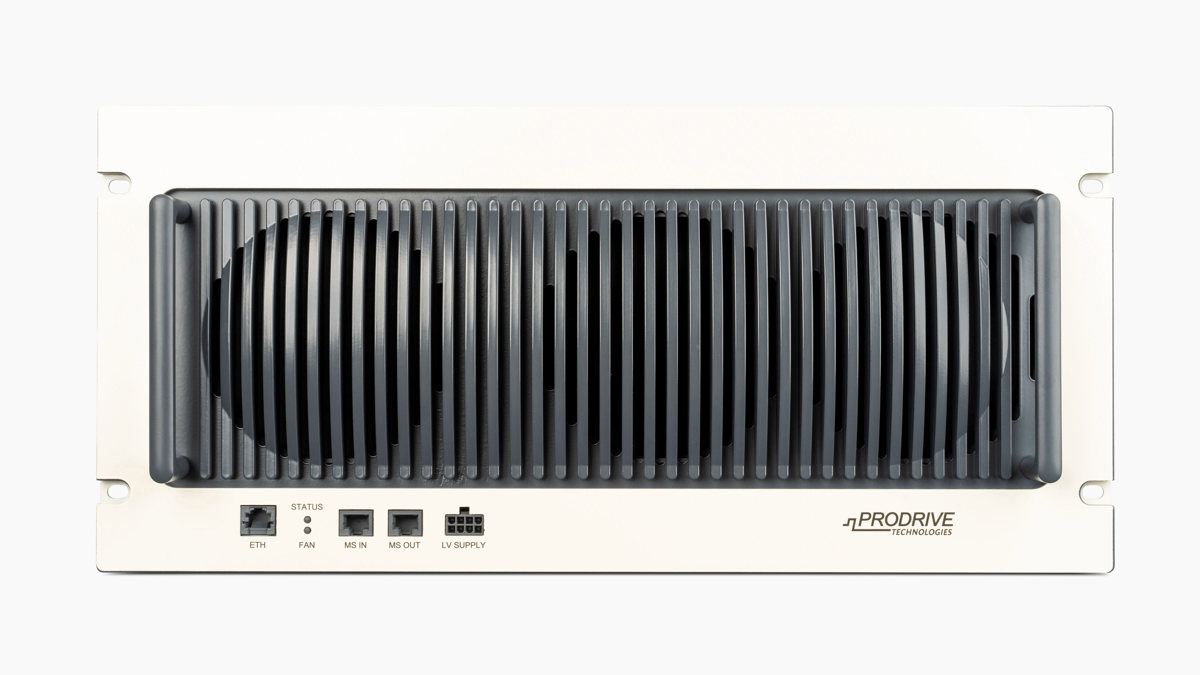

SiC based inverter/converter - Airdra 25
Universal bi-directional galvanically isolated Inverter/Converter of 25kW
The Airdra is an AC/DC as well as an DC/AC that can be the link in fuelcell and grid applications. It can operate grid connected as well as stand alone, creating a local micro-grid. Because ist is galvanically isolated Airdra's can be paralelled upto 500kW.
-
High efficiency SiC technology
High frequency SiC technology results in 97% efficiency
-
Galvanic isolated
Multiple units can be connected in parallel upto 500kW
-
Fully bi-directional
Can be used between grid and fuel cell or battery
-
SunSpec Modbus
Uses an existing bus protocol
Benefits
-
Fully bi-directional
Airdra is very flexible and can be configured as AC/DC as well as DC/AC inverter
-
Short circuit and under and overvoltage protected
Airdra is very robust and can deal with fault conditions
-
Very low powerlosses
SiC technology has high switching frequency and therefore low losses
-
Multiple Airdra's can be connected without special provisions
Airdra's are galvanically isolated therefore can be paralelled without additional measures
Markets & industries
-
Energy & infrastructure
Generating green Hydrogen from Green surplus Engergy
Technical specifications
