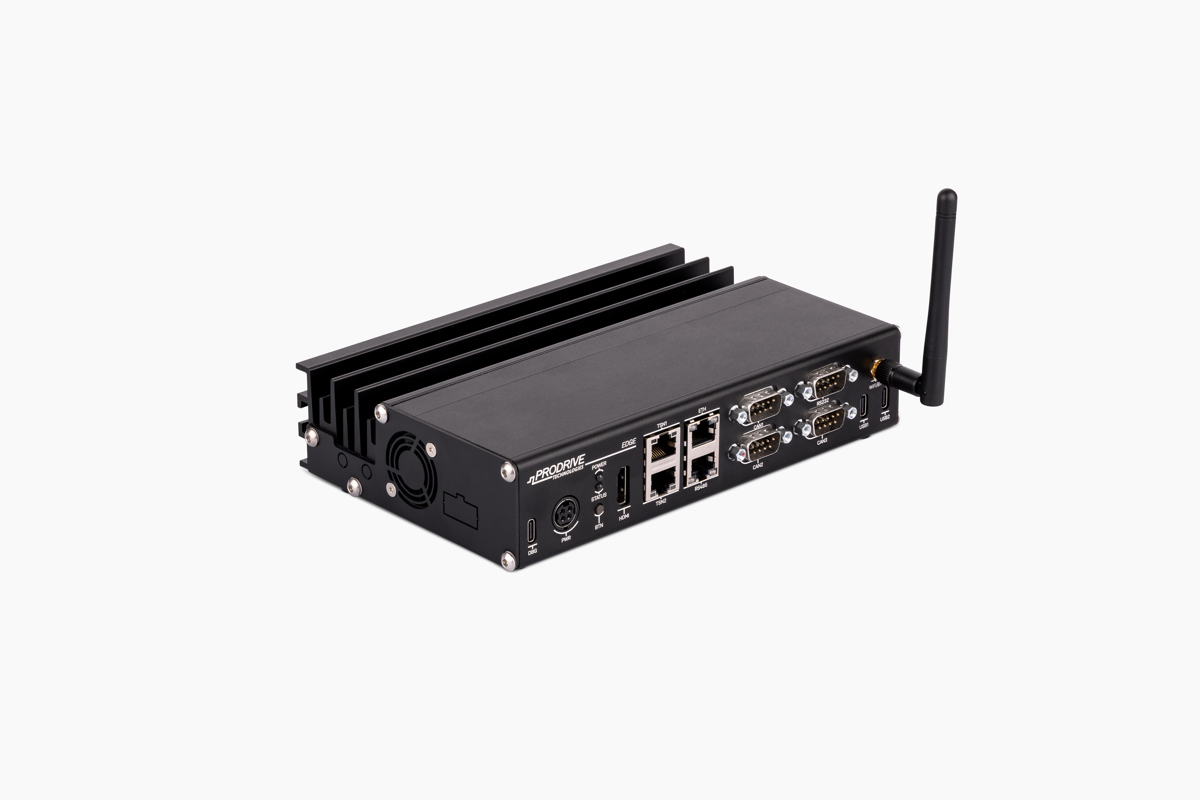

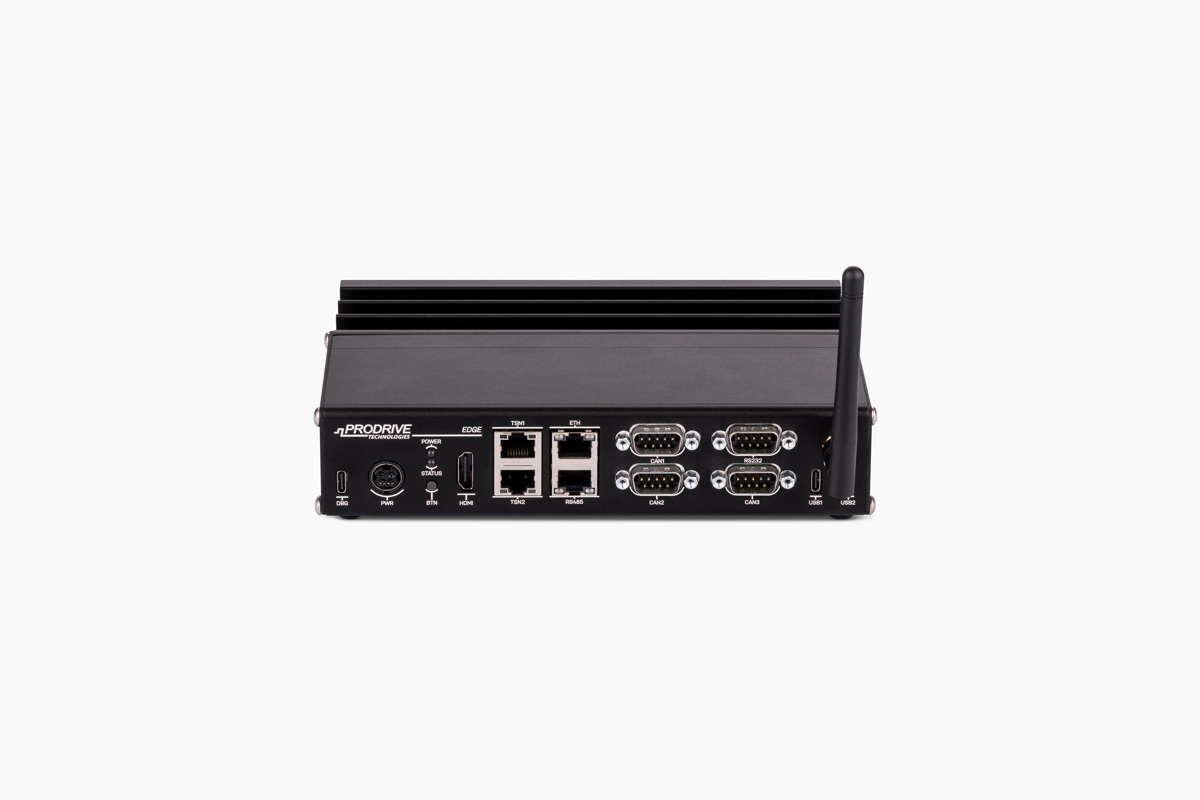

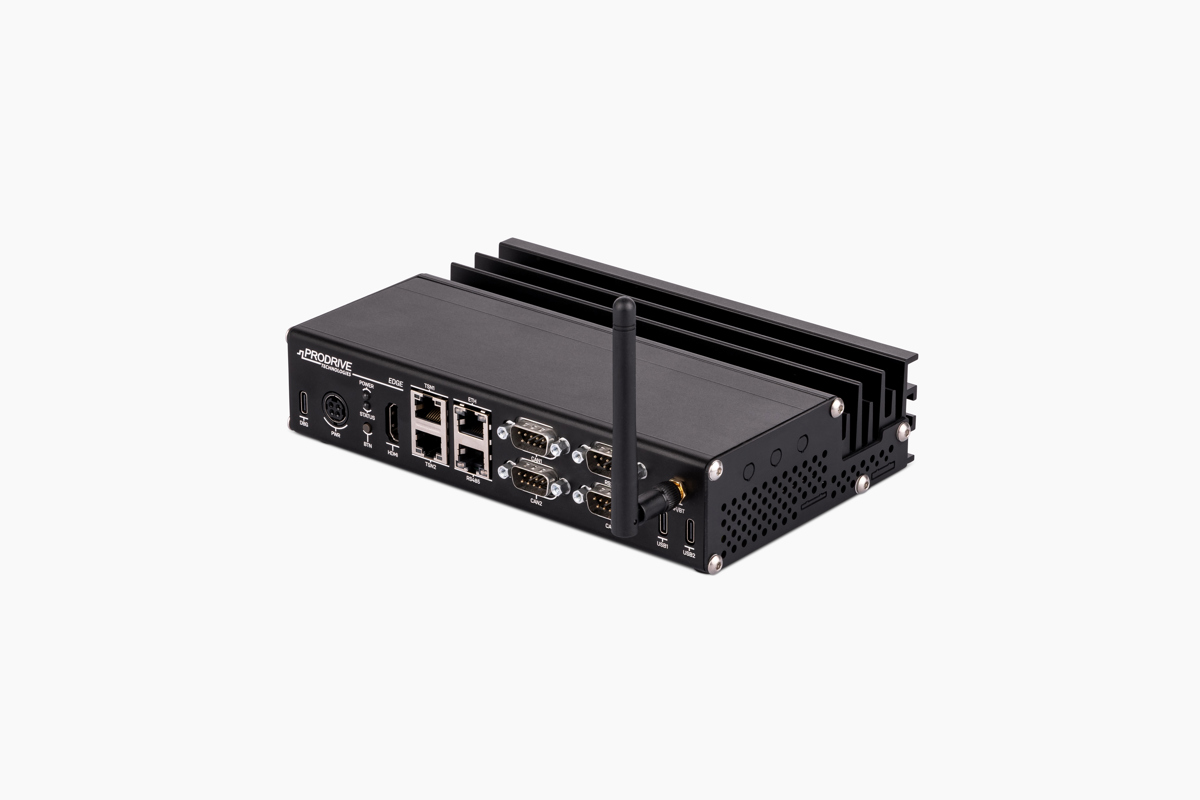

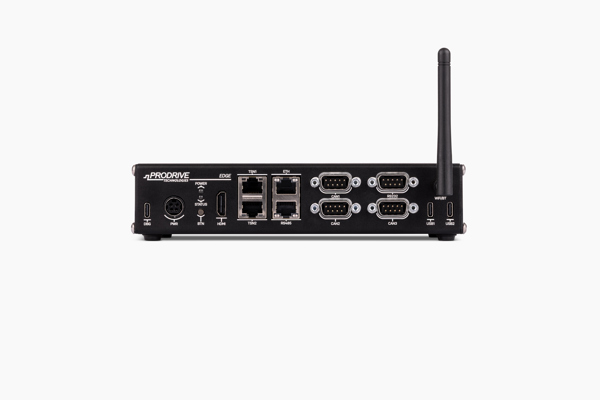

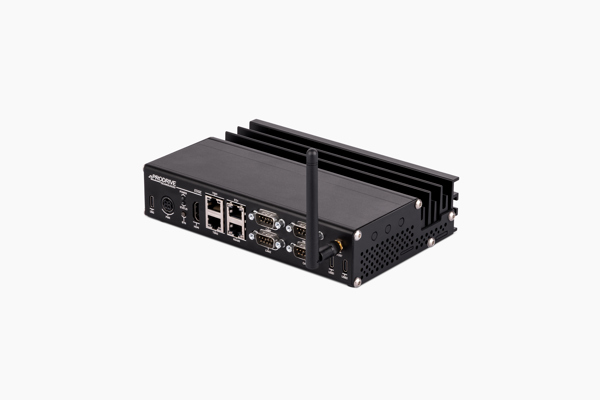

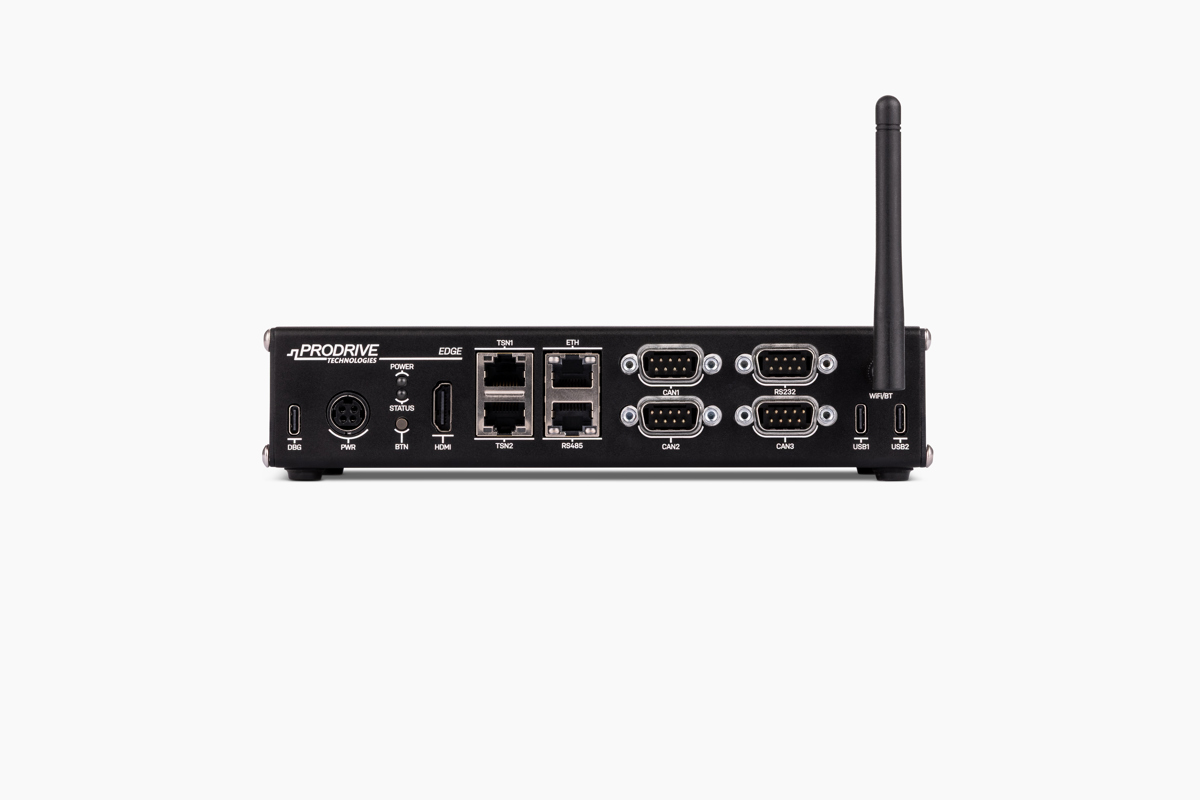

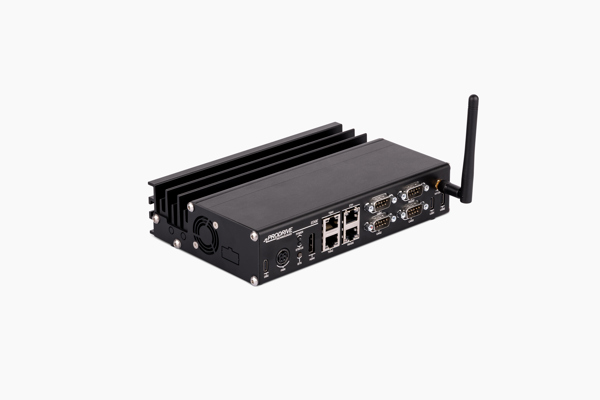

Edge devices - PTedge
Boost your application development with the PTedge series of high-performance embedded development kits
Unlock powerful edge performance with the A53‑MP development kit, designed for communication‑centric industrial and automotive applications. Built on a proven hardware and software platform, it enables fast prototyping, reduces development risk, and accelerates time‑to‑market.
The PTedge series delivers flexible connectivity with multiple CAN and Ethernet ports featuring Time‑Sensitive Networking (TSN), as well as high‑performance Wi‑Fi 6. Integrated M.2 expansion slots allow easy addition of 5G modems or AI accelerators, providing scalable compute and networking options for diverse edge workloads.
With built‑in TSN support, the A53‑MP ensures deterministic, low‑latency, and highly reliable data transfer over standard Ethernet. This makes it ideal for applications that demand precise synchronization and predictable communication, from industrial automation to next‑generation mobility systems."
Unlock powerful edge performance with the A53‑MP development kit, designed for communication‑centric industrial and automotive applications. Built on a proven hardware and software platform, it enables fast prototyping, reduces development risk, and accelerates time‑to‑market.
The PTedge series delivers flexible connectivity with multiple CAN and Ethernet ports featuring Time‑Sensitive Networking (TSN), as well as high‑performance Wi‑Fi 6. Integrated M.2 expansion slots allow easy addition of 5G modems or AI accelerators, providing scalable compute and networking options for diverse edge workloads.
With built‑in TSN support, the A53‑MP ensures deterministic, low‑latency, and highly reliable data transfer over standard Ethernet. This makes it ideal for applications that demand precise synchronization and predictable communication, from industrial automation to next‑generation mobility systems."
Technical specification
| Processing & Memory | |
|---|---|
| Microprocessor | NXP i.MX8M Plus Quad |
| Cores | Quad ARM Cortex-A53 <1.6GHz |
| Memory | 4GB LPDDR4 |
| Storage | 16GB High-speed eMMC (HS-400) |
| Interfaces | |
| Ethernet | 2x 100BASE-TX with TSN, 1x 1000BASE-T |
| CAN | 3x CAN 2.0 up to 1Mbit/s |
| Serial/USB | RS485, RS232, 2x USB Type C |
| Video In/Out | 1x HDMI, 1x LVDS, 1x DSI, 1x CSI, 1x Line In/Out |
| Expansion slots | 1x M.2 E-key, 1x M.2 M-key (prepared for Axelera Metis AI accelerator module), 1x mPCIe |
| Wireless | |
| Local | WiFi 6, Bluetooth Low Energy 5.4 |
| Sensors & Peripherals | |
| RTC IMU | 1x Real-Time Clock |
| Temperature | 1x Accelerometer / Gyroscope |
| Power Input | 4x on-board temperature sensor, Voltage/Current monitoring |
| Input/Output | |
| 4x Digital Input/Output | |
| Power Input | |
| Nominal voltage | 9-36V DC |
| Regulatory | |
| On request | |
