LV DC-DC - MP series

Rugged bi-directional converter with wide operating ranges and power levels

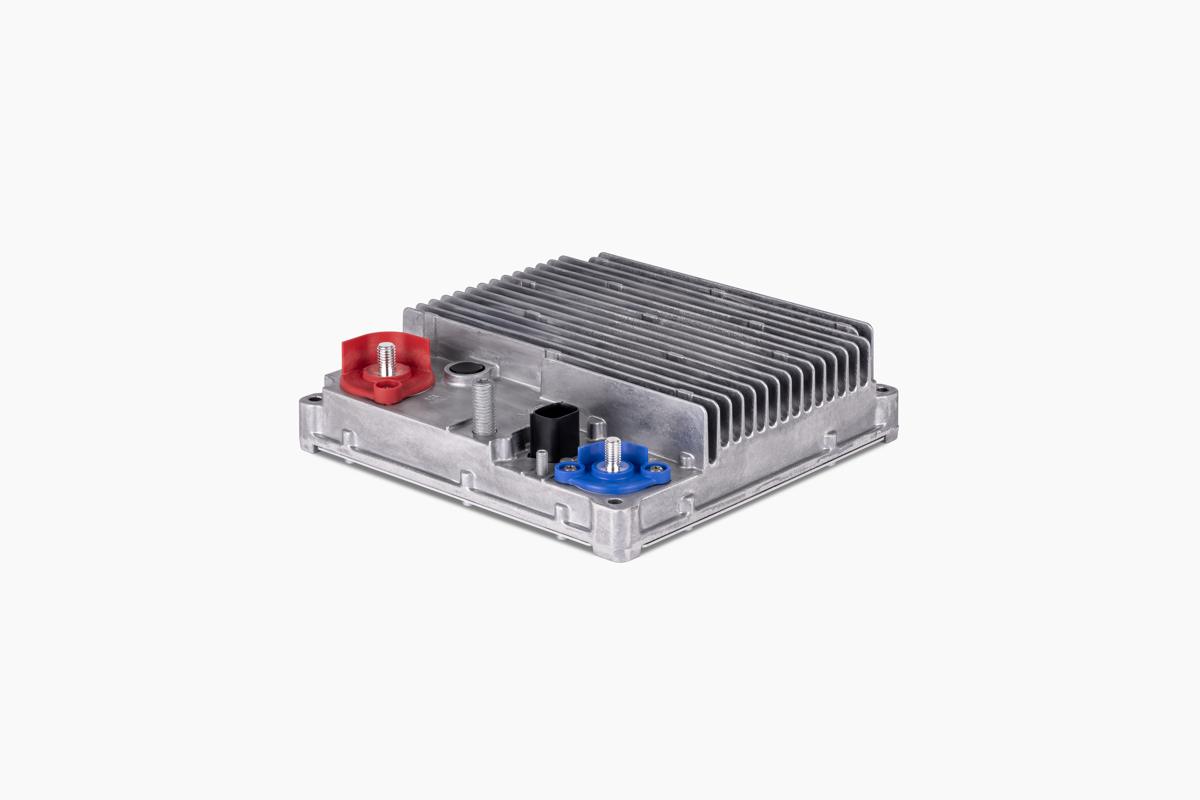

  • Prodrive-OP-MP-Epsilon-Studios-Noud-Otten-15.jpg (1)

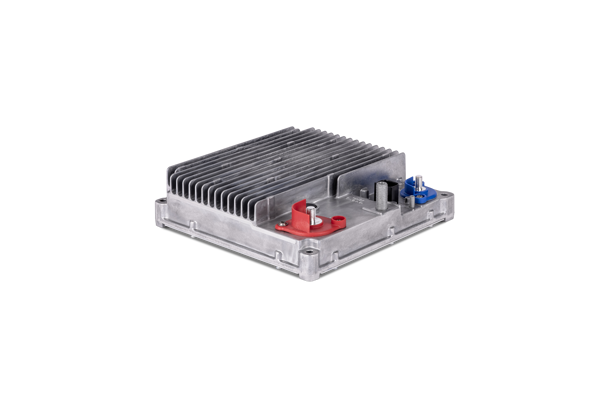

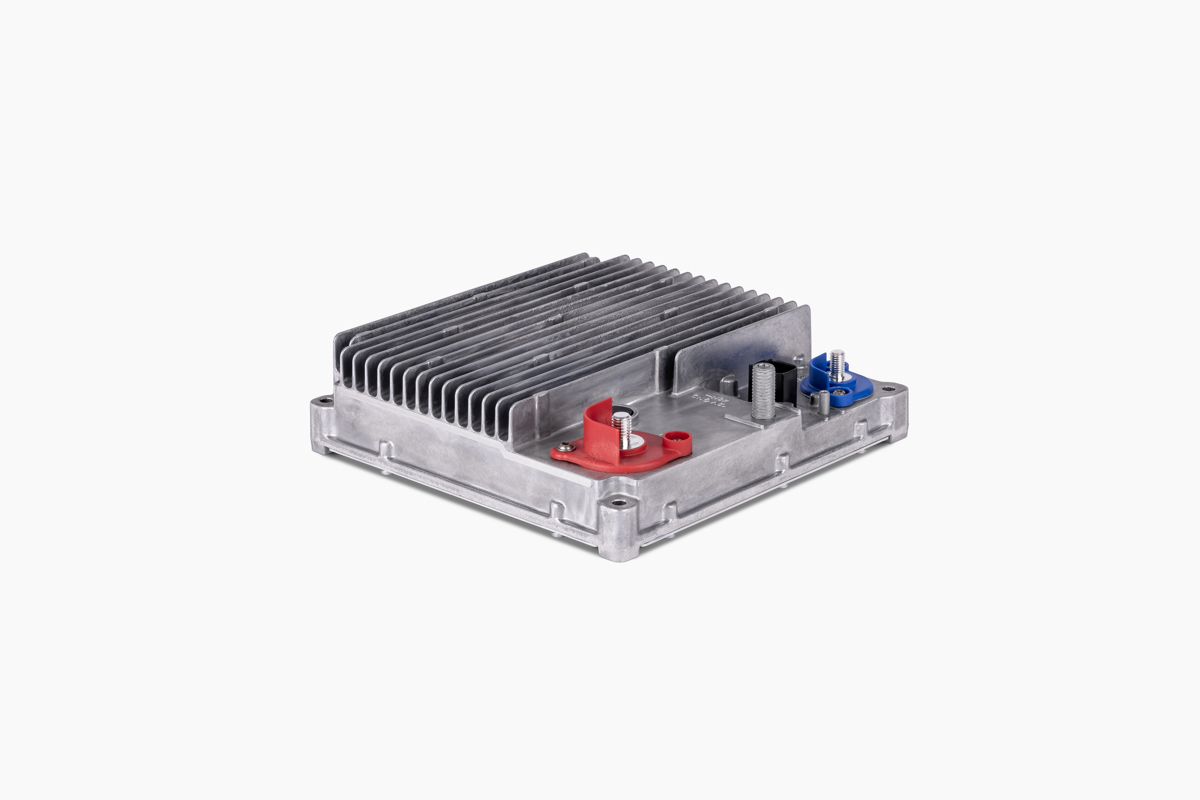

  • Prodrive-OP-MP-Epsilon-Studios-Noud-Otten-16.jpg

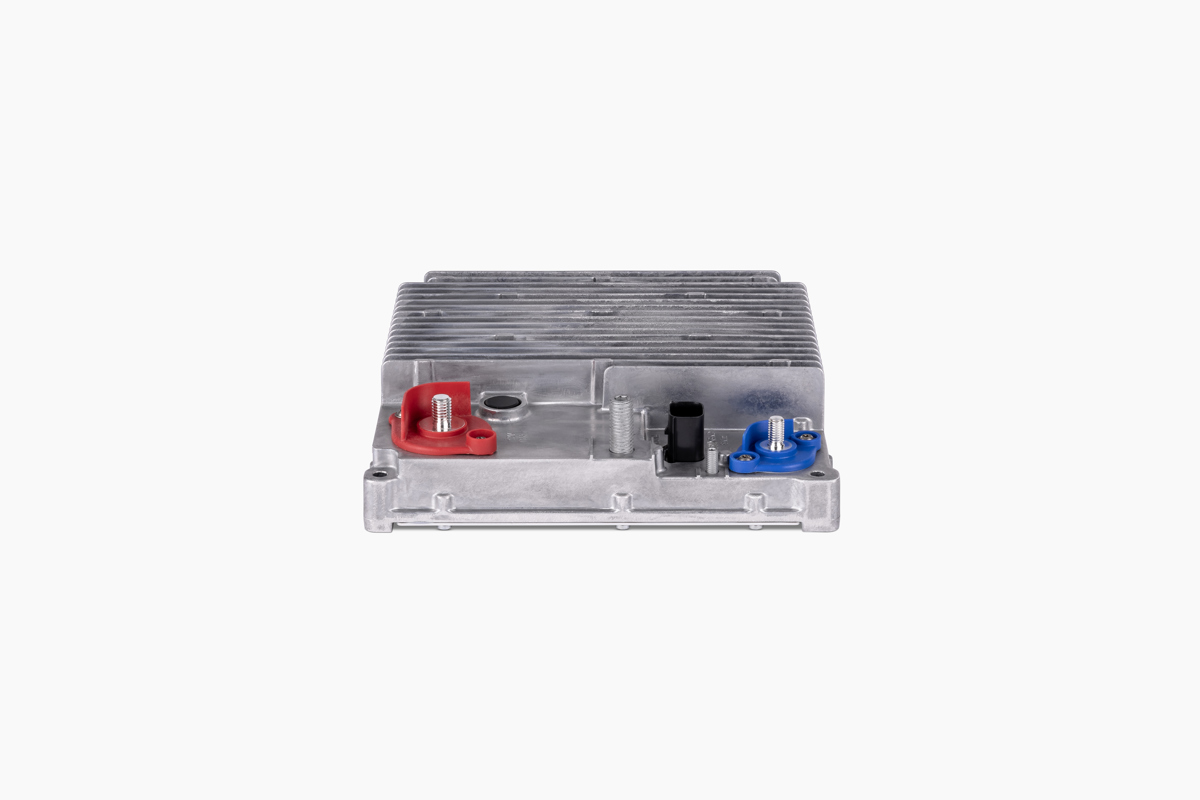

  • Prodrive-OP-MP-Epsilon-Studios-Noud-Otten-17.jpg

The MP series is designed for demanding industrial and off-highway applications, this rugged bi-directional DC-DC converter delivers reliable power transfer between low- and high-voltage buses, supporting hybrid, electrified, and regenerative energy architectures. With scalable power from 600 W to 3.6 kW, the unit adapts to a wide range of applications and load requirements. It is end user friendly with the ability to configure the PGNs through the CAN.

Talk to sales

  • Bi-directional

    Buck or boost operation

  • End user configurable

    Easily programmable through CAN

  • Rugged & reliable

    Built for harsh-duty environments; shock, vibration, and temperature tolerant; IP67/69K options.

  • Efficient

    Multiphase design reduces ripple and thermal stress for long-term reliability


Features

  • Fully bi-directional
  • Slim form factor: 227mm x 233mm x 62mm for the air-cooled version
  • Overvoltage, overcurrent, overtemperature, reverse polarity protected
  • Multiphase scalability option up to six phases
  • EMC filters included
  • CAN Interface / J1939 / end user configurable
  • 250kb/s, 500kb/s, or 1Mb/s operation
  • Wide voltage range on high side, 8V-60V
  • ECE R10 / CE compliant
  • Rugged / IP69k
  • 24V to 24V operation available
  • 24Vdc to 12Vdc or 12Vdc to 24Vdc operation available
  • Battery equalizer operation available
  • Autostart operation available

Benefits

  • Scalability

    Easily scales to meet the demands of the growing clean energy transition

  • Versatility

    Suitable for a wide range of applications and low voltage battery chemistries

  • Quality

    Extensive checkpoints through manufacturing cycle to ensure the highest quality of end product

  • Support

    Global teams to ensure prompt responses to help with technical, commercial, quality, and logistic inquiries

Application areas

Our solution cover a wide range of field applications supporting the conversion of energy to/from batteries to electrical loads and or from battery to battery.

  • Construction Machinery

    [Edit] Construction Machinery.jpg

  • Agriculture Equipment

    [Edit] Agriculture Equipment.jpg

  • Utility Vehicles

    [Edit] Utility Vehicles.jpg

  • Marine

    [Edited] Marine.jpg

  • Ground Support Equipment

    [Edit] Ground support equipment.jpg

  • Municipality Vehicles

    Municipality Vehicles.jpg

  • Material Handling

    [Edit] Material handling.jpg

Markets & industries

  • Mobility


  • Industrial

    Automated transport.png

    Integration into advanced machines requiring synchronized sensor data, multi‑camera capture, and deterministic FPGA‑based processing

  • Energy & infrastructure

    Energy grid.png

    Generating green Hydrogen from Green surplus Engergy

Model series

Model Power HV (VB) LV (KL30) Efficiency Operating Temperature Mechanical
MP5612-80 1kW 8V-68V 6V-16V 95% -40°C to 75°C 227x233x62 (mm)
24/12 operation 600W 2.6kg
MP5612-160 2kW 8V-68V 6V-16V 95% -40°C to 75°C 227x233x62 (mm)
24/12 operation 1.2kW 3.0kg
MP5612-240 3kW 8V-68V 6V-16V 95% -40°C to 75°C 227x233x62 (mm)
24/12 operation 1.8kW 3.2kg
MP5624-150 3.6kW 8V-68V 8V-32V 95% -40°C to 75°C 227x233x62 (mm)
24/24 operation 1.4kW 3.2kg
