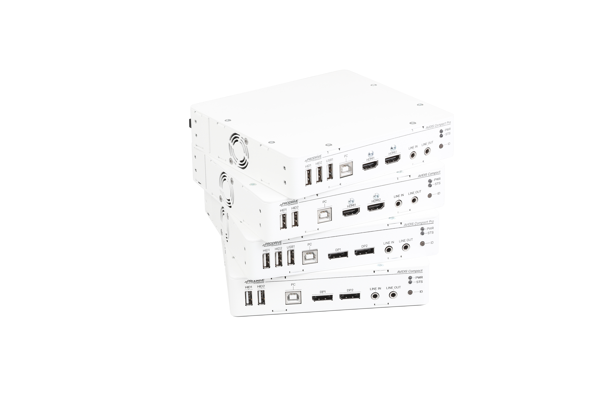

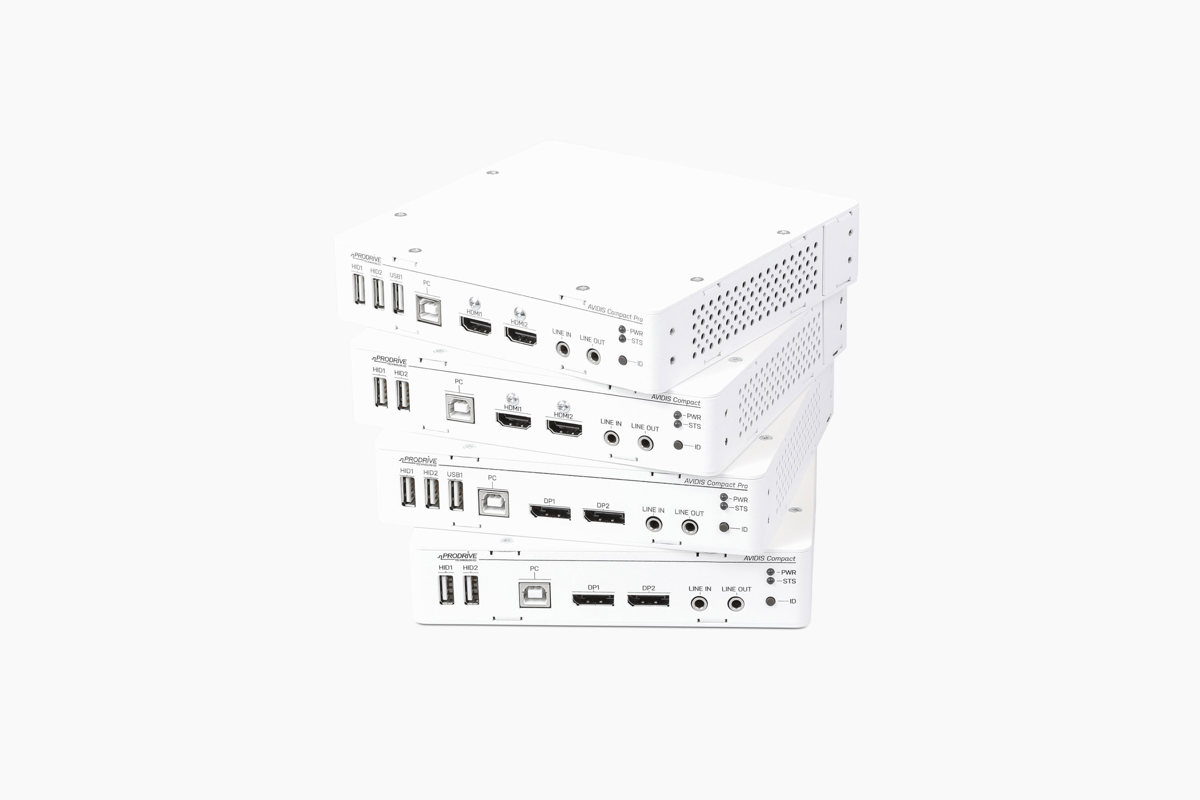

Compact series

Video-over-IP solution for low-latency, uncompressed video distribution and processing up to 4K60.

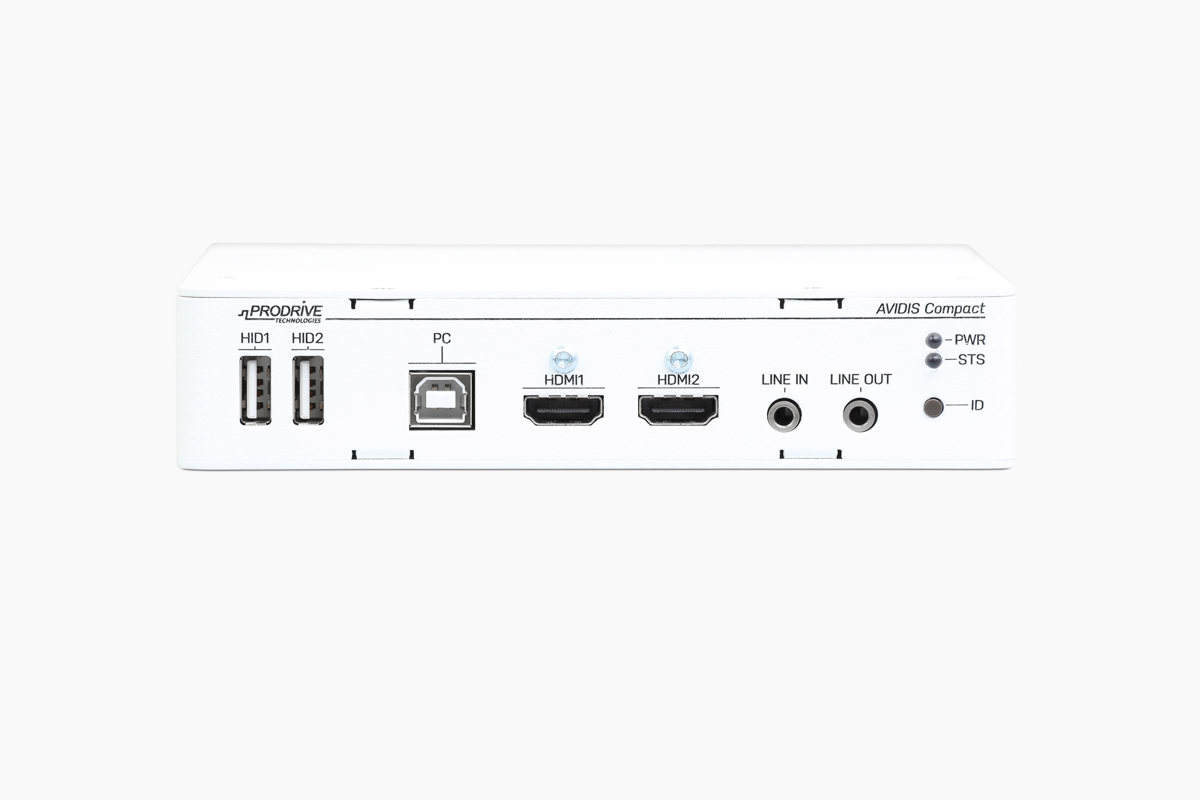

Connect up to 2 video interfaces to the Video-over-IP network using the Compact (Pro).

Video interfaces are either HDMI or Displayport, and each interface can be configured to be a video input or output.

Send and/or receive up to 4K@60 4:4:4 video without any compression, along with analog audio, KVM, IR, RS232 and 1GbE.

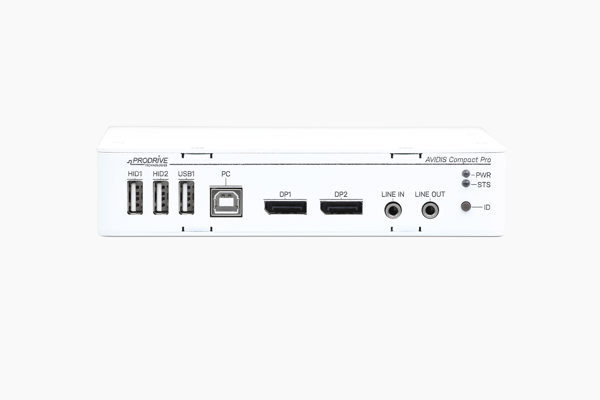

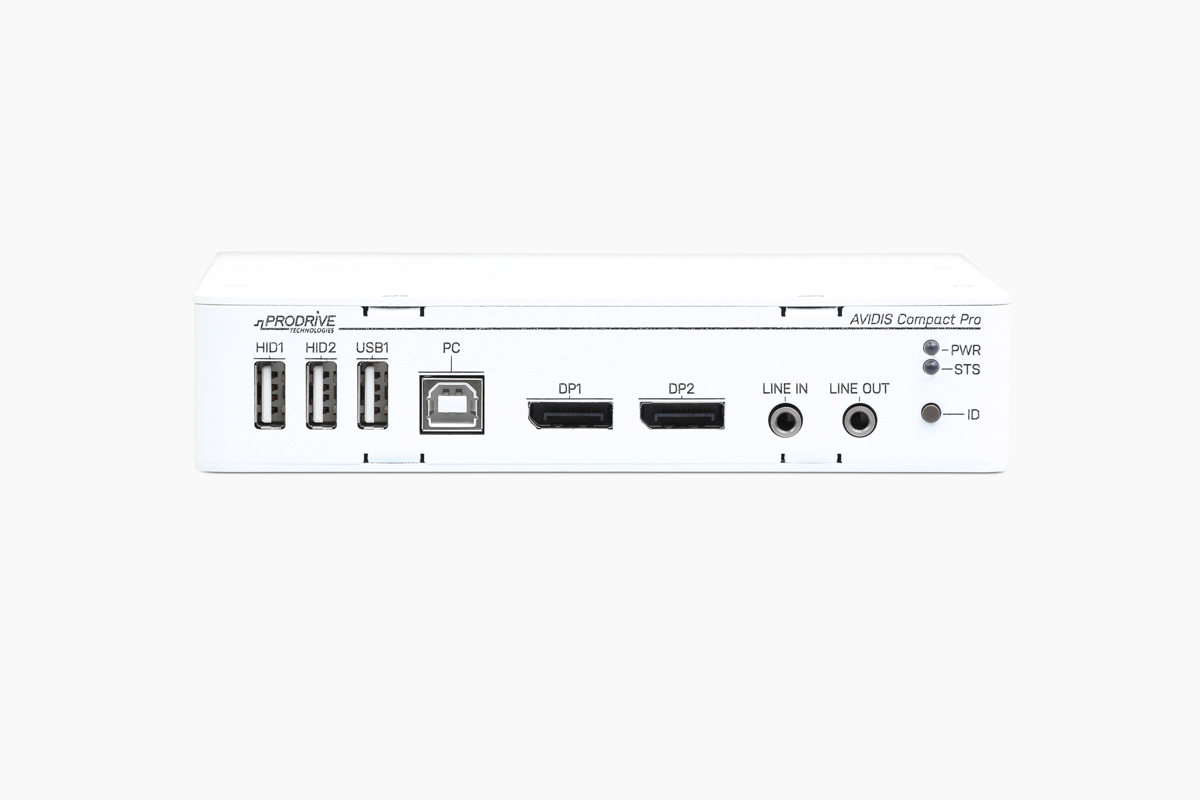

The Compact Pro adds a USB 2.0 interface and the option to combine up to 4 video sources on a single display."

Video-over-IP solution for low-latency, uncompressed video distribution and processing up to 4K60.

Connect up to 2 video interfaces to the Video-over-IP network using the Compact (Pro).

Video interfaces are either HDMI or Displayport, and each interface can be configured to be a video input or output.

Send and/or receive up to 4K@60 4:4:4 video without any compression, along with analog audio, KVM, IR, RS232 and 1GbE.

The Compact Pro adds a USB 2.0 interface and the option to combine up to 4 video sources on a single display."

Uncompressed 4K60 4:4:4

Transmit video up to 4K60 10bit 4:4:4 without compression.
Low latency

Making real-time decisions possible
Certified for medical

Products are certified according to medical safety standards.
Advanced video processing

Compositing, Scaling, 3DLUT, Color space conversion, 3D processing, filtering.
Control via an extensive software API
Less wires

Send Audio, Video, USB, 1GbE ethernet, GPIO and serial over a single fiber

Features

Up to 4K60 4:4:4 video
Uncompressed, low latency video streaming
Video ports configurable as input or output
Independent audio, USB, 1GbE, GPIO and serial streaming
Video processing like scaling, overlays and masking
[Compact Pro only] Combine multiple video sources on a single display using video compositor
Control and diagnostics via software API

Uncompressed video streaming

No loss in video quality
Scalability

Easily scalable from small to large medical rooms
Less wires

Send Audio, Video, USB, 1GbE ethernet, GPIO and serial over a single fiber
Certified for medical

Certified according to medical safety standards for multiple regions

Medical & life sciences

Video-over-IP solution for low-latency, uncompressed video distribution

Model	Compact HDMI	Compact DP	Compact Pro HDMI	Compact Pro DP
Max. resolution (@frame rate)	4096x2160(@60Hz)
Video quality	Uncompressed, original quality
Video latency	< 1-2 frames
Video interfaces	2x HDMI 2.0, configurable as input or output	2x DP 1.2, configurable as input or output	2x HDMI 2.0, configurable as input or output	2x DP 1.2, configurable as input or output

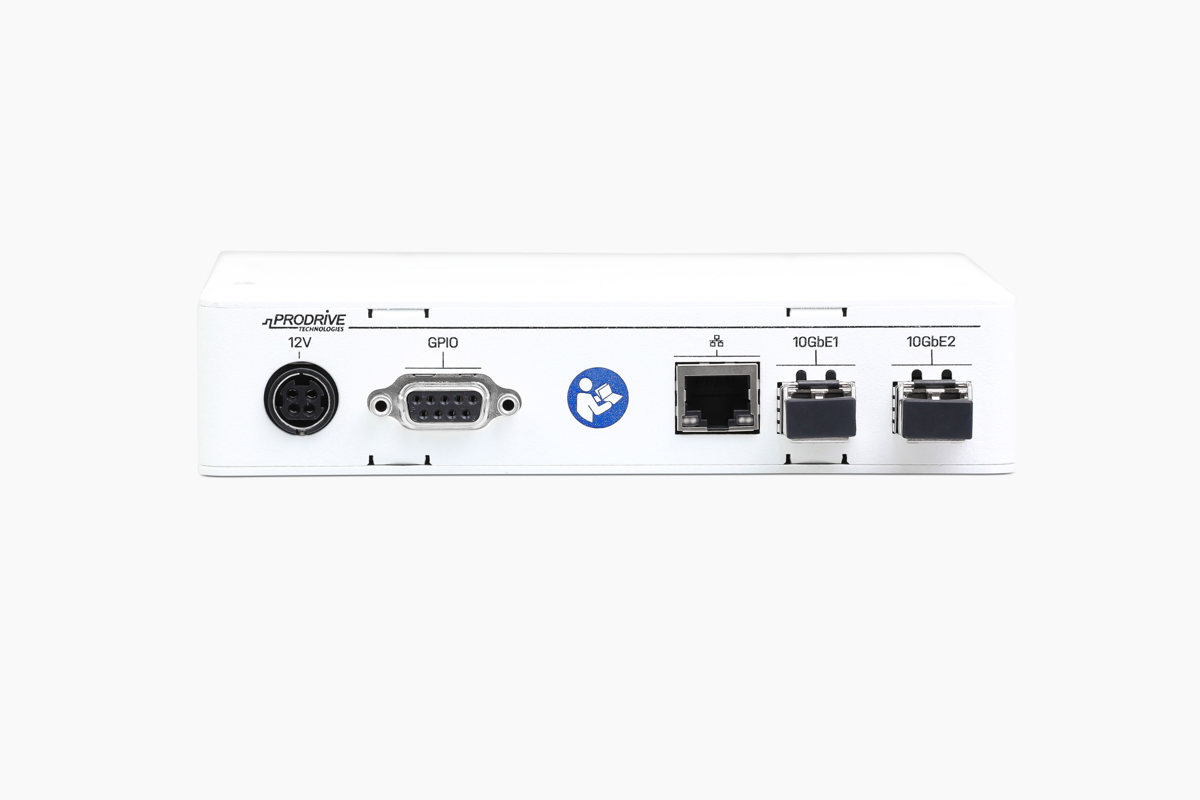

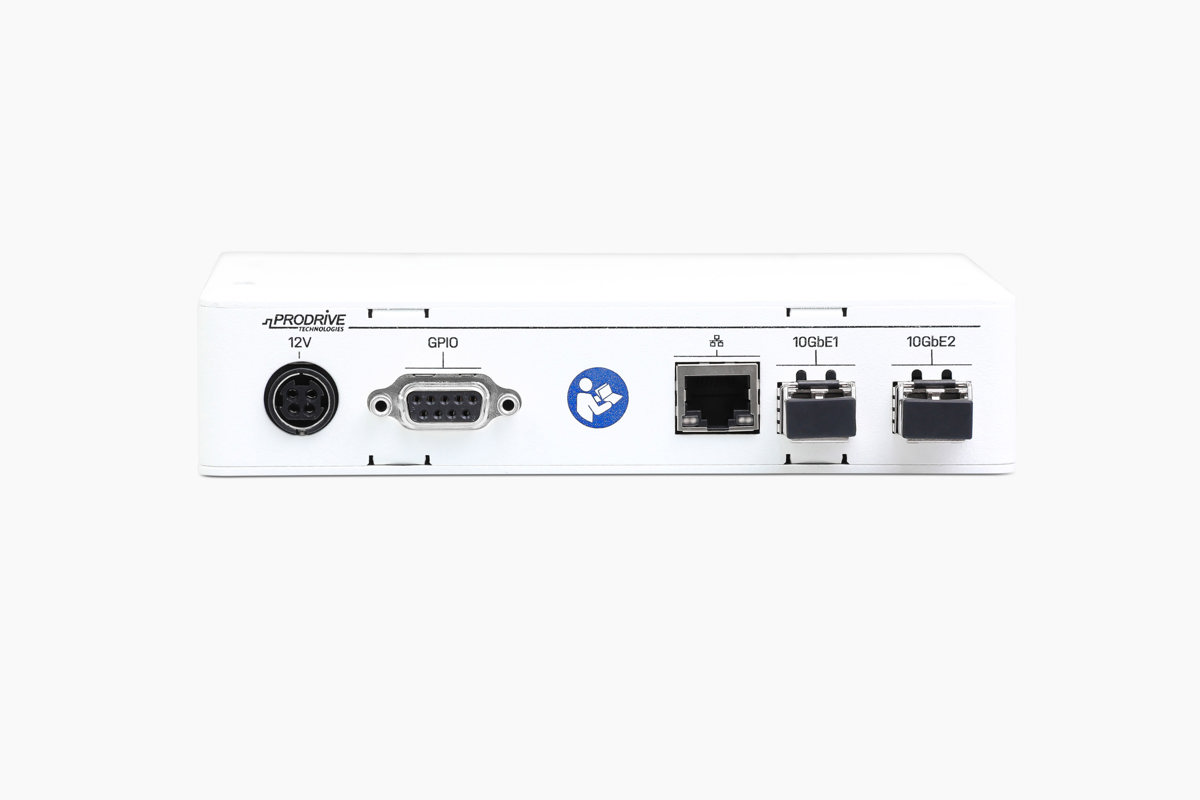

Streaming interfaces	2x SFP+ (10GbE)
Audio interfaces	1x Line in + line out
USB interfaces	2x USB 2.0 host (HID only) + 1x USB 2.0 HID gadget		2x USB 2.0 host (HID only) + 1x USB 2.0 data + 1x USB 2.0 HID gadget
Ethernet interfaces	1x 1GbE
GPIO interfaces	1x GPIO interface
Video processing	Video scaling, overlay, masking, color space conversion
Advanced video processing	Not supported		Multi-view (combine multiple video sources on a single display), video wall
Power input	12V DC
Power (typ.) [W]	23		34
Software	Extensive control and diagnostics software API
Regulatory	CE + cMETus according to 60601-1 norm
Environmental	WEEE, RoHS & REACH
Dimensions [mm]	160 x 154 x 34
