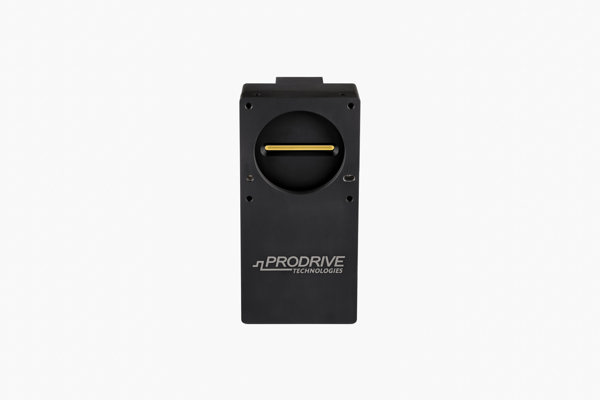

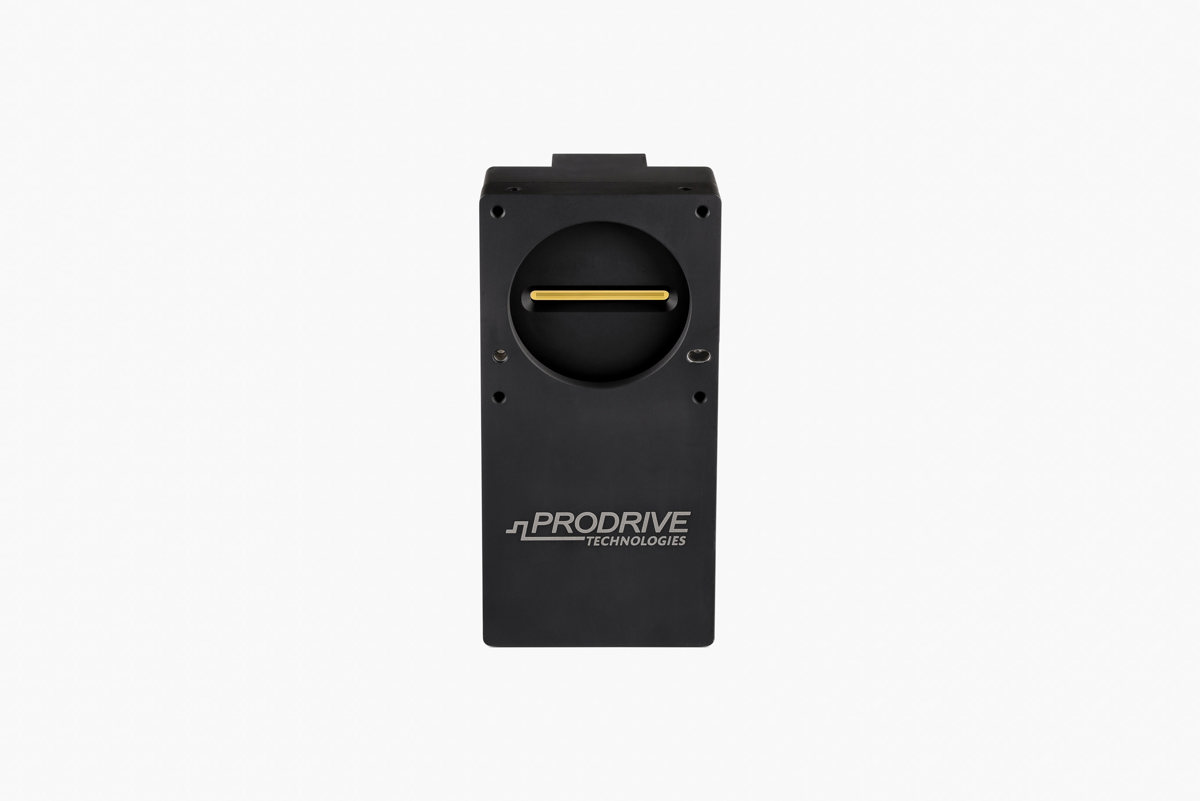

  • TDI camera Sonic-elevated-top

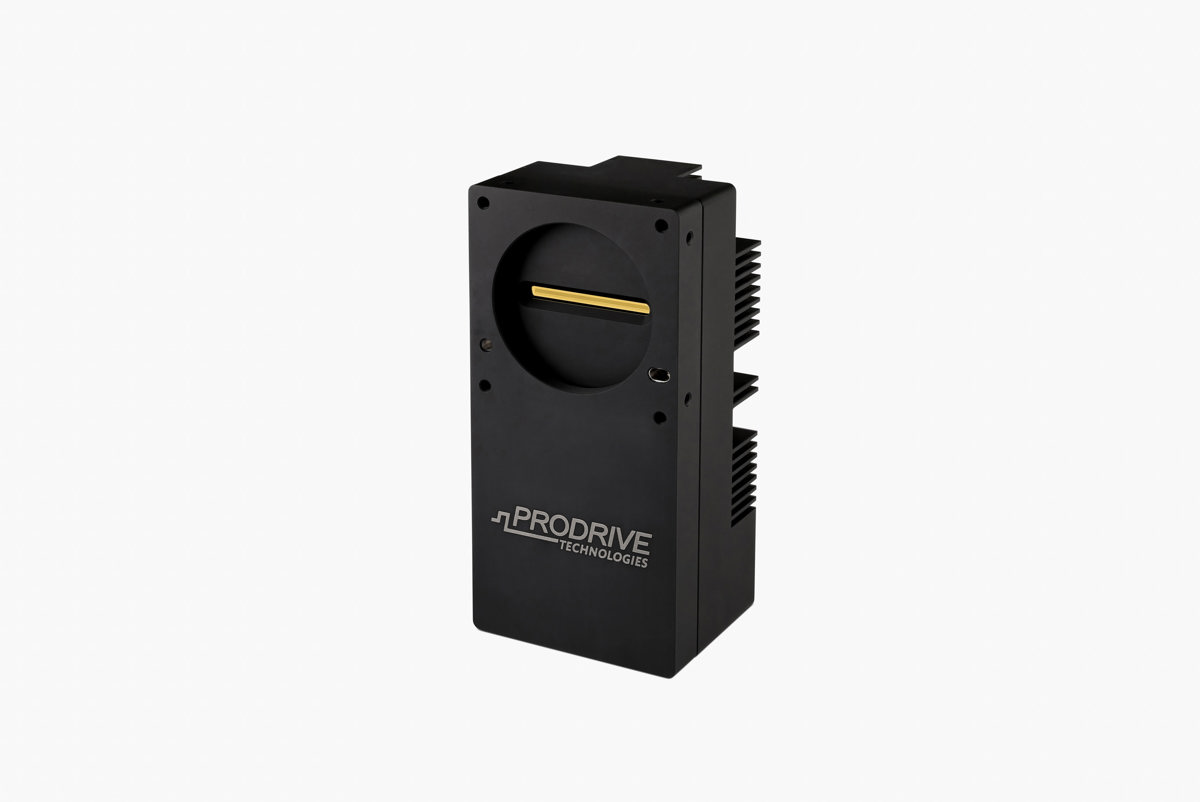

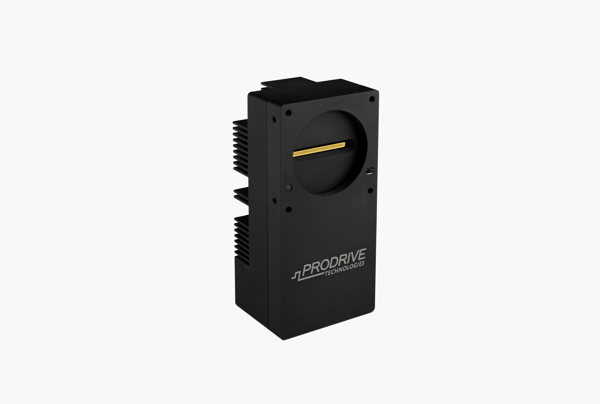

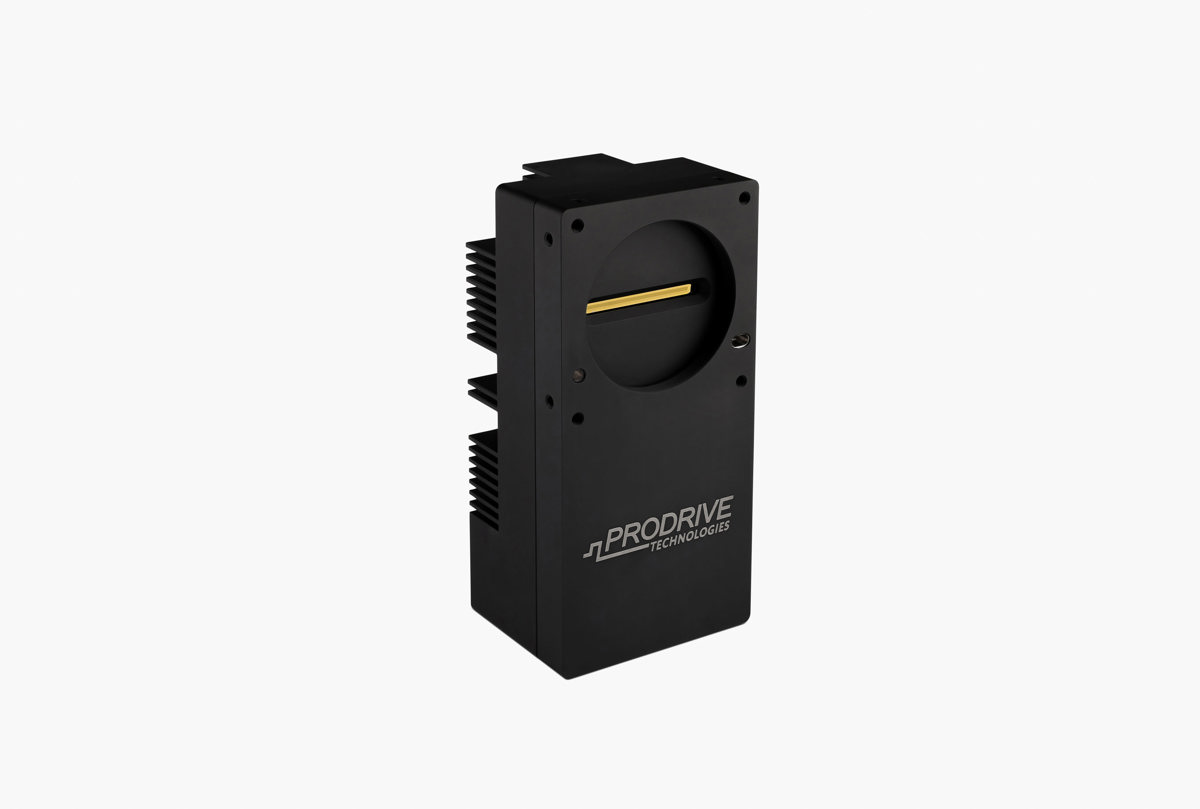

Experience unmatched speed and image quality with the Sonic TDI line scan camera

Achieve the highest throughput and exceptional image quality with the Sonic 1MHz TDI line scan camera, engineered for demanding high-end optical inspection applications.

Sonic sets a new benchmark in TDI imaging, combining a resolution of 8k columns with a line rate of 1MHz. Its backside-illuminated (BSI) sensor features 256 TDI stages, delivering faster and more accurate image acquisition even under challenging lighting conditions. Users can leverage all 256 stages at the 1MHz line rate with 10-bit grayscale resolution, ensuring superior image quality and sensitivity.

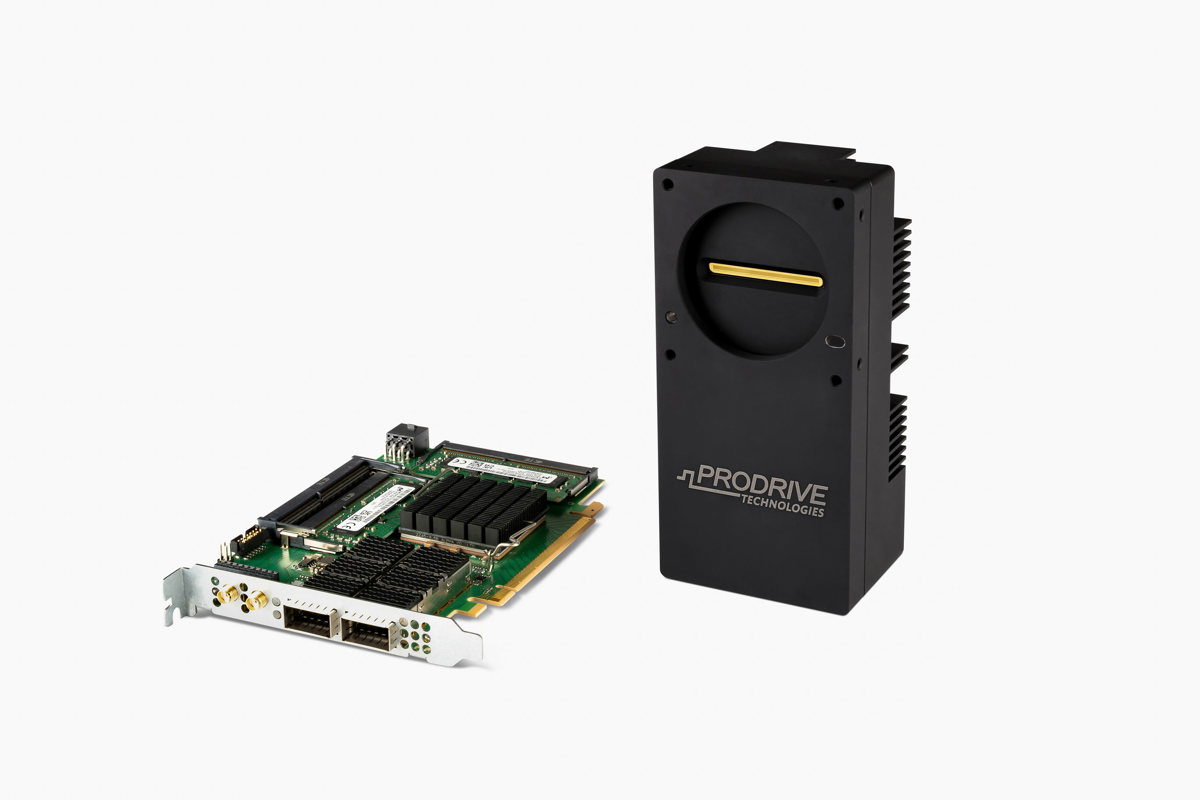

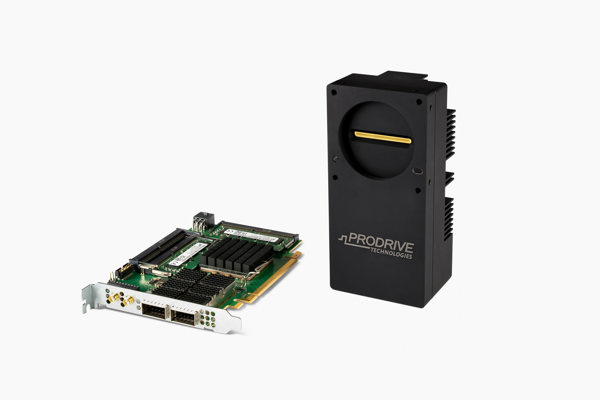

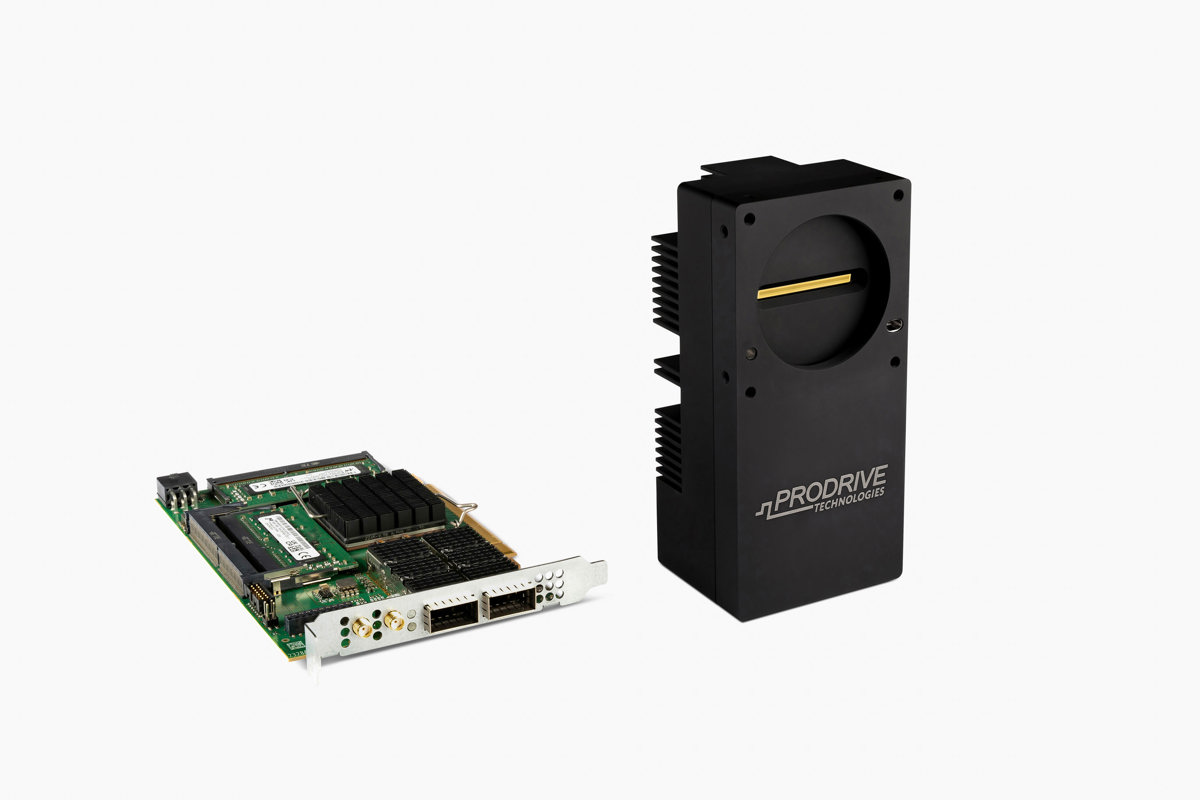

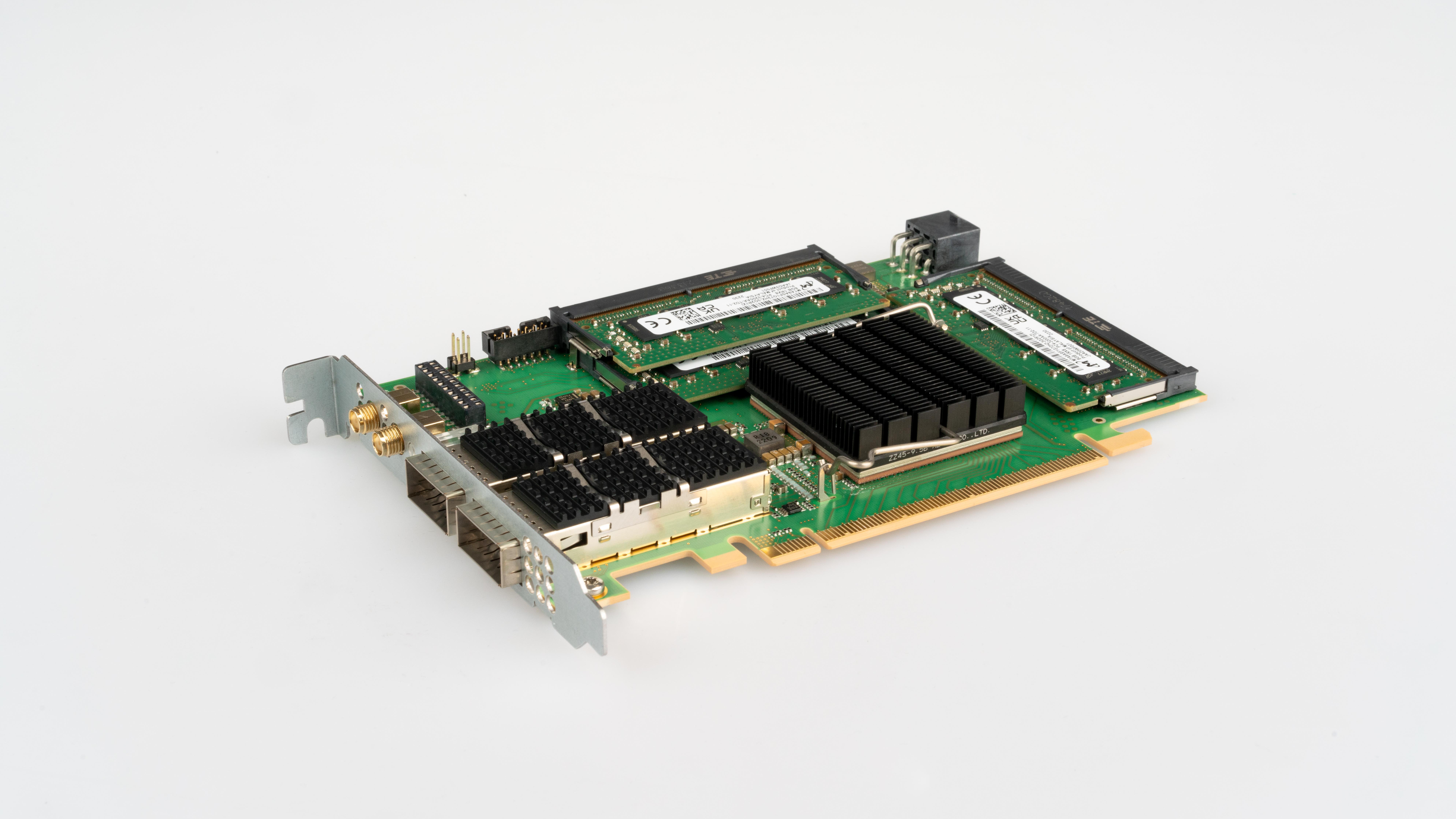

For a seamless system integration, the Sonic camera connects effortlessly to the GenICam compliant Apollo frame grabber via a CLHS optical fiber interface. A single frame grabber supports the camera’s full performance, while the data forwarding support enables flexible distributed processing architectures.

For specialized applications, a DUV-enhanced version is available, offering enhanced sensitivity at 266nm and 355nm, while maintaining outstanding performance across the visible spectrum.

Speak with our experts today to discover how the Sonic TDI line scan camera can elevate your inspection system to new levels of speed, accuracy, and reliability.

Talk to sales

  • Unprecedented image quality

    Capture 10 bits resolution at the full 1MHz linerate

  • Optimal combination of sensitivity and speed

    Use all 256 TDI stages at full speed

  • UV enhanced or VIS optimized ARC coating

    Dedicated cameras for wafer inspection or Life Sciences applications

  • Easy system integration

    Benefit from the full speed of the Sonic camera through 1 frame grabber

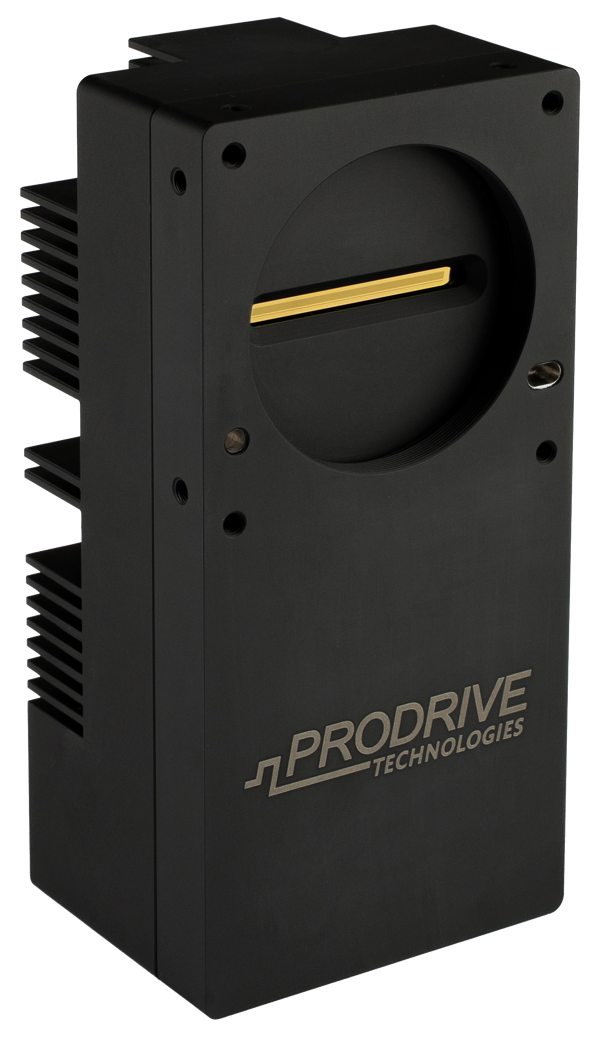

TDI Camera Sonic-Elevated-Right.png

Features

  • -Up to 1MHz line rate for high throughput applications
  • - BSI sensor with 256 stages for excellent sensitivity
  • - Bi-directional scanning
  • - Flat Field Correction (multiple user sets)
  • - Sensor options for 266nm;355nm or VIS imaging
  • - Area Scan mode supported
  • - Fiber optic interface, cables lengths >100mtr
  • - End-to-End solution, compliant GenICam

Application areas

Our TDI camera- Sonic  covers a wide range of applications in the Semiconductor, Life science and Flat panel industry

  • DNA sequencing

    DNA Sequencing

  • Flat panel display processing


  • PCB inspection

    PCB Inspection

  • Digital pathology


Markets

  • Semiconductor


    Image processing and defect classification

  • Medical & life sciences


    Video-over-IP solution for low-latency, uncompressed video distribution

  • Flat panel display


    Components and solutions for LED, LCD, DLP, plasma and LCD displays

  • Electronics assembly

    In-House Development & Manufacturing

    High-precision motion control that boost throughput and accuracy

  • Mobility


Technical specifications

Specification Sonic-8k500 Sonic-8k1000 Sonic-16k500 Sonic-16k1000
Sensor GPixel GLT5008BSI GPixel GLT5008BSI GPixel GLT5016BSI GPixel GLT5016BSI
Resolution 8,192 8,192 16,384 16,384
Pixel Size 5µm x 5µm 5µm x 5µm 5µm x 5µm 5µm x 5µm
Max. Line Rate (10b) 500kHz 1,000kHz 500kHz 1,000kHz
Max. Line Rate (12b) 500kHz 500kHz 500kHz 500kHz
TDI Stages 256 (available at full speed) 256 (available at full speed) 256 (available at full speed) 256 (available at full speed)
QE UV: 70% @ 266nm / 58% @ 355nm; VIS: 94% @ 460nm / 87% @ 530nm UV: 70% @ 266nm / 58% @ 355nm; VIS: 94% @ 460nm / 87% @ 530nm UV: 70% @ 266nm / 58% @ 355nm; VIS: 94% @ 460nm / 87% @ 530nm UV: 70% @ 266nm / 58% @ 355nm; VIS: 94% @ 460nm / 87% @ 530nm
Bi Directional Read-Out Yes Yes Yes Yes
Binning Yes, 2x2 binning Yes, 2x2 binning Yes, 2x2 binning Yes, 2x2 binning
Pixel Format 8b/10b/12b 8b/10b/12b 8b/10b/12b 8b/10b/12b
Data Interface CLHS over Fiber CLHS over Fiber CLHS over Fiber CLHS over Fiber
Dimensions 76 x 160 x 58.5mm 76 x 160 x 58.5mm 120 x 160 x 58.5mm 120 x 160 x 58.5mm
Triggering 1x HW Trigger; 1x SW Trigger 1x HW Trigger; 1x SW Trigger 1x HW Trigger; 1x SW Trigger 1x HW Trigger; 1x SW Trigger
Lens Mount M58 x 0.75mm M58 x 0.75mm M95 x 1.0mm M95 x 1.0mm
Supply Voltage 12V 12V 12–24V 12–24V
Power (Typ.) — — — —
Cooling Air (standard) / Water (On Request) Air (standard) / Water (On Request) Air (standard) / Water (On Request) Air (standard) / Water (On Request)
