Compact Arcas motion controller handle up to 12 synchronized axes at 10kHz

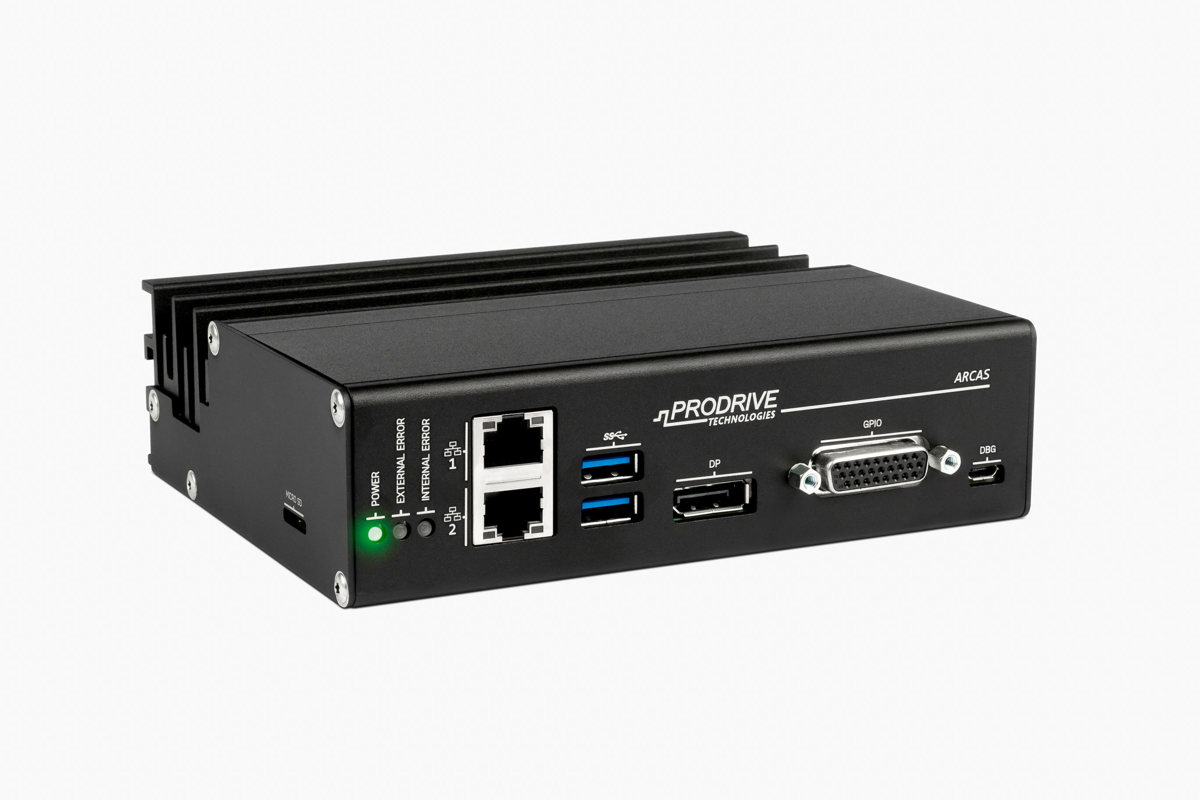

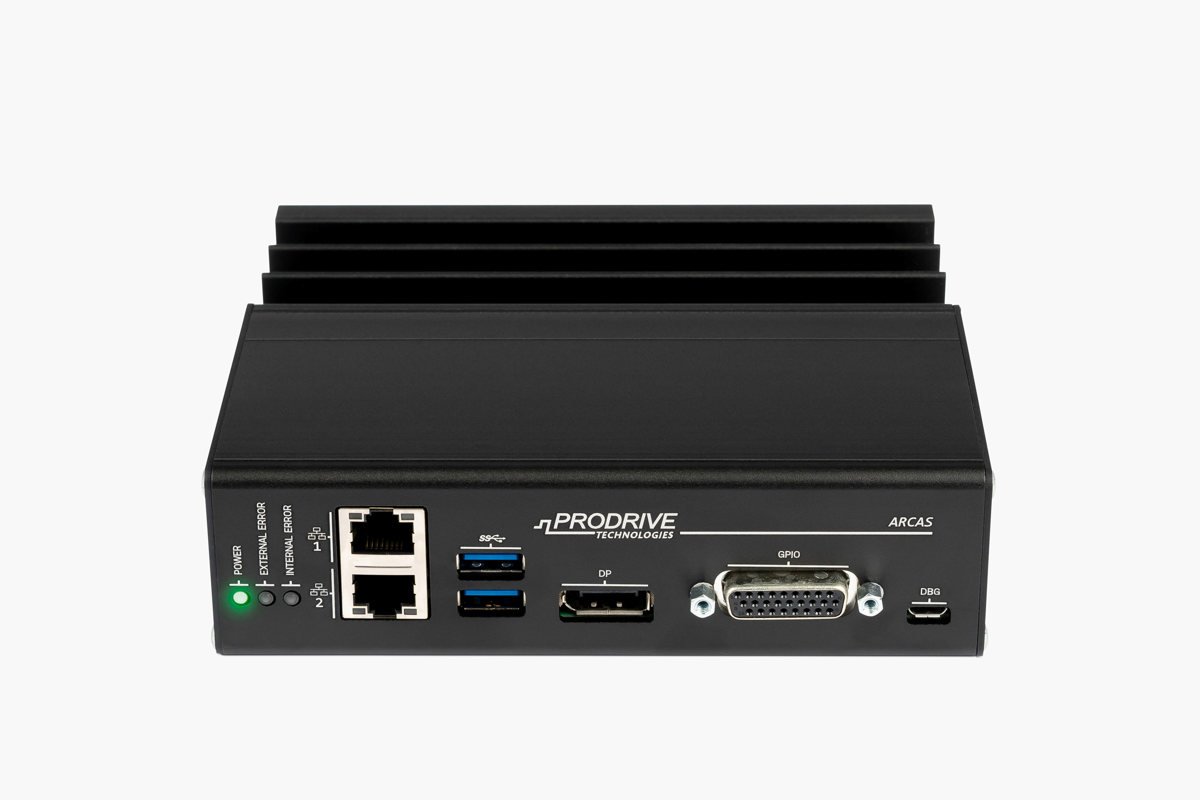

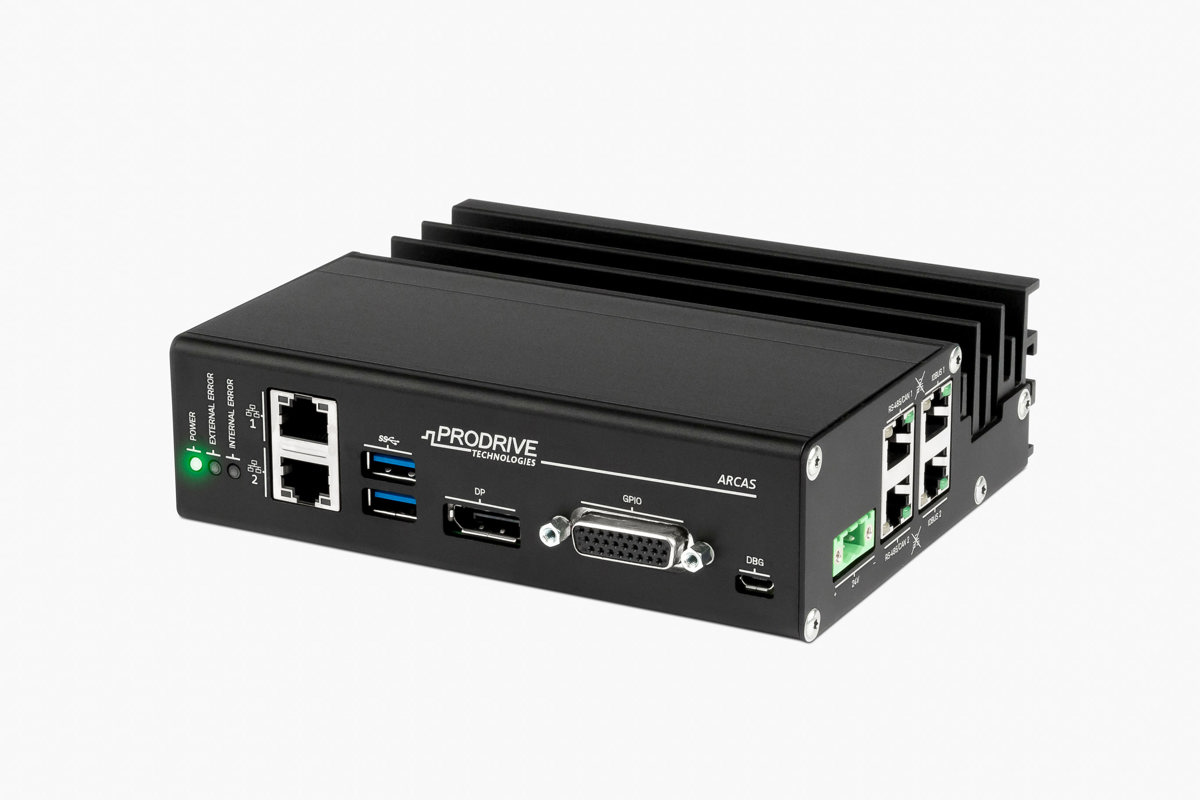

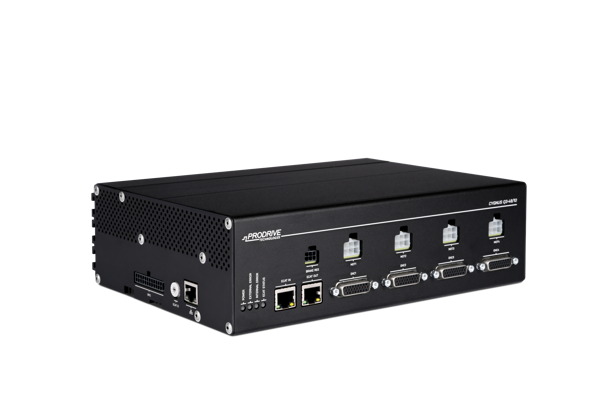

The Arcas controller is a compact, high-performance motion control for applications like electronics manufacturing, die-packaging, AOI, medical imaging systems, and more. It synchronizes up to 12 motor axes at a 10 kHz update rate, ensuring precise and deterministic control for demanding applications.
Built on a 64-bit Quad Cortex-A53 processor, Arcas combines multi-core processing with Gigabit Ethernet interface for host communication and seamless EtherCAT® connectivity for servo drives and I/O modules. Additional features include two high-speed RS-422 trigger outputs and eight general-purpose 24V I/O lines for maximum flexibility.
With advanced compliance standards and a 10+ year lifecycle, Arcas offers unmatched reliability. It supports panel or DIN rail mounting and meets IEC 61000-6-1 EMC immunity, EN 55011 emissions, and IEC 62368-1 electrical safety requirements.

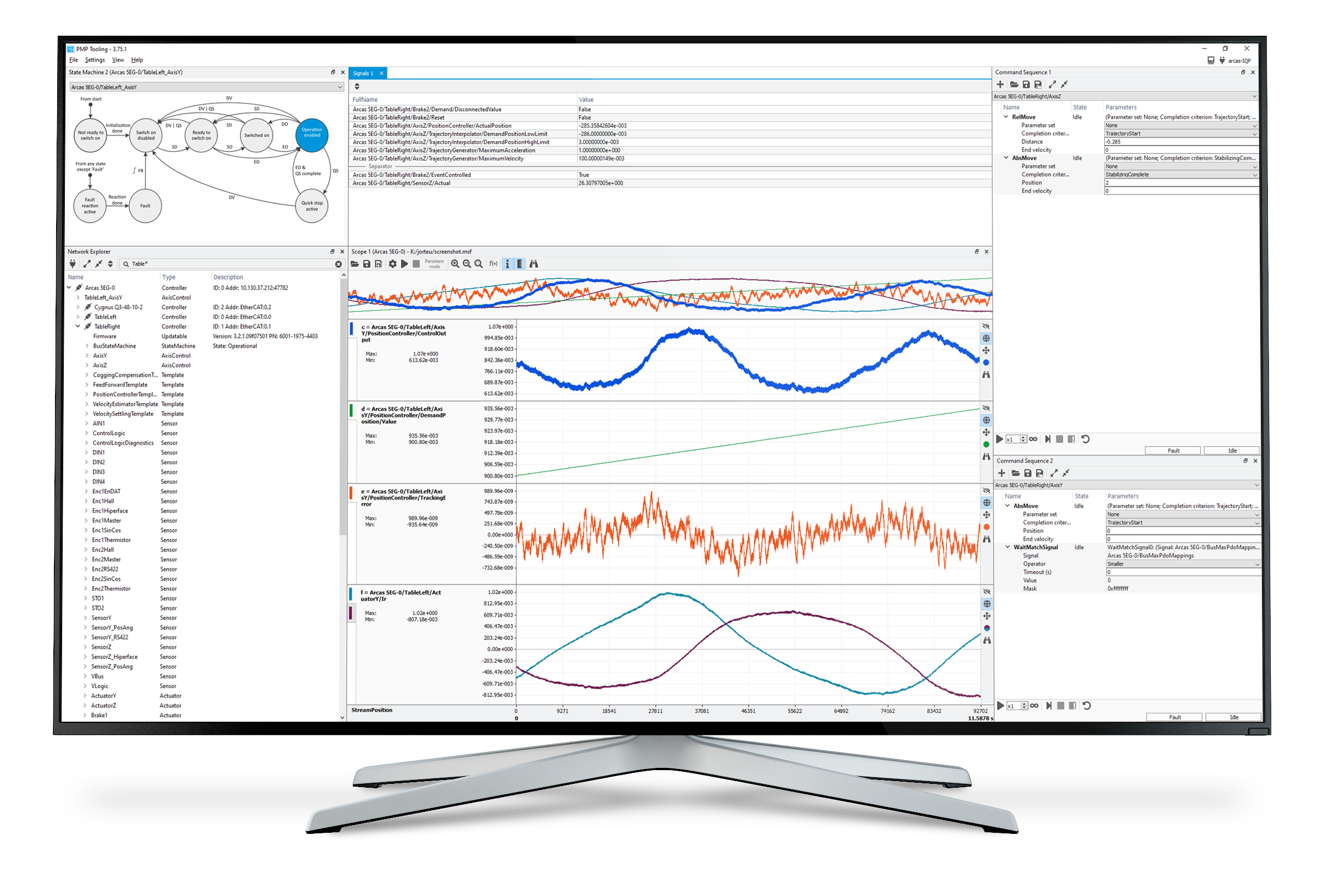

Developers can optimize and customize motion control using the Prodrive Motion Platform (PMP) software, which provides real-time performance and full control loop flexibility. MATLAB® and Simulink® integration enables the design and implementation of custom algorithms, making Arcas a powerful platform for next-generation automation.
-
Compact & Powerful
high performance in a small footprint that enables real-time responsiveness
-
10 kHz Real-Time EtherCAT Update Rate
Fast feedback and control loops, ideal for centralized motion control in critical applications
-
Advanced Control Flexibility
Supports custom control algorithms, giving users the freedom to design optimized motion strategies -
Versatile I/O Options
Low latency for critical I/Os
Features
- Synchronizes up to 12 motor axes at 10 kHz update rate
- 64-bit Quad Cortex-A53 processor for high-performance control
- Gigabit Ethernet interface for host communication
- EtherCAT® bus for servo drives and I/O modules
- Two high-speed RS-422 trigger outputs for position-based events
- Eight general-purpose 24V I/O lines for versatile integration
- Compact design for panel or DIN rail mounting
- 10+ year lifecycle support for long-term reliability
- MATLAB® and Simulink® integration for custom control loops design
- MATLAB® and Simulink® integration for custom control loops design
- Low power consumption (<35W) with wide input voltage range (12–24VDC)
Benefits
-
High Precision
Delivers deterministic control with 10 kHz update rate for smooth, accurate motion across multiple axes.
-
Low Latency
Optimized architecture and real-time synchronization minimize delays for demanding industrial and medical applications.
-
Flexibility
Supports a wide range of applications, from electronics manufacturing and die-packaging to AOI and medical imaging.
-
Compact Design
Space-saving form factor with panel or DIN rail mounting options for easy integration.
-
Long-Term Reliability
Compliant with IEC and EMC standards and backed by 10+ year lifecycle support.
-
Advanced Development Tools
PMP software and MATLAB®/Simulink® integration enable custom algorithm design and real-time tuning.
-
